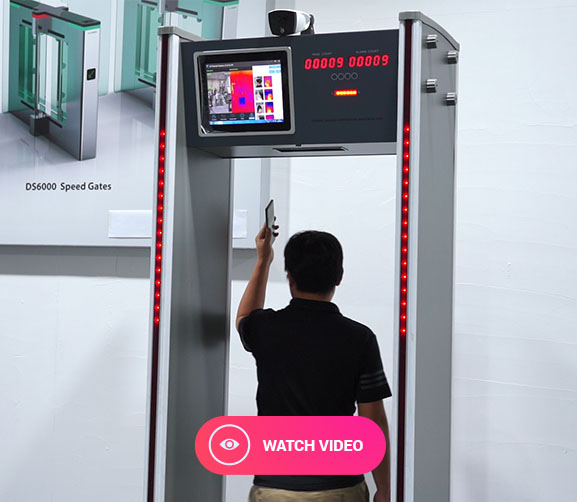

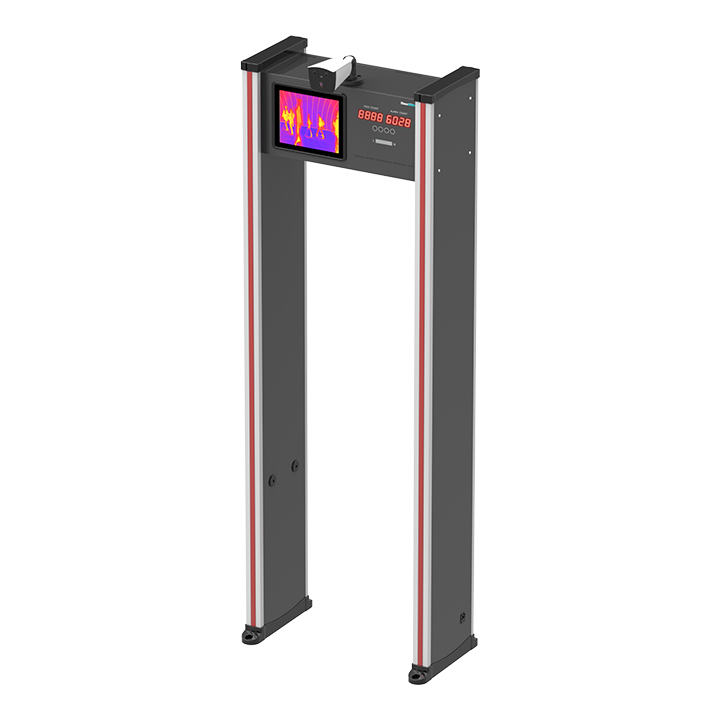

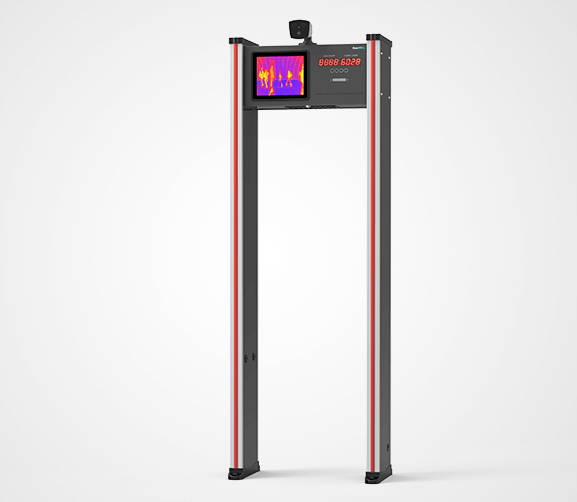

Play Previous Next Infrared Thermal Imaging Temperature Measurement Walk-Through Detector DSSP517
- Uses infrared thermal imaging technology to quickly capture temperature data, to measure temperature for people passing in non-contact way, and to prompt alarm the abnormal temperature through acousto-optic alarm, so as to effectively prevent large-scale disease infection.
- It is integrating high-precision thermal imaging temperature sensor, built-in intelligent face capturing algorithm, image processing and other technologies. With face detection, body temperature detection, face capture and other powerful functions.
- It can carry out metal detection on the passing person, check whether they carry metal contraband or not, effectively assist in anti-epidemic, and realize public safety prevention and control. Inquire Now
Detection Performance Display

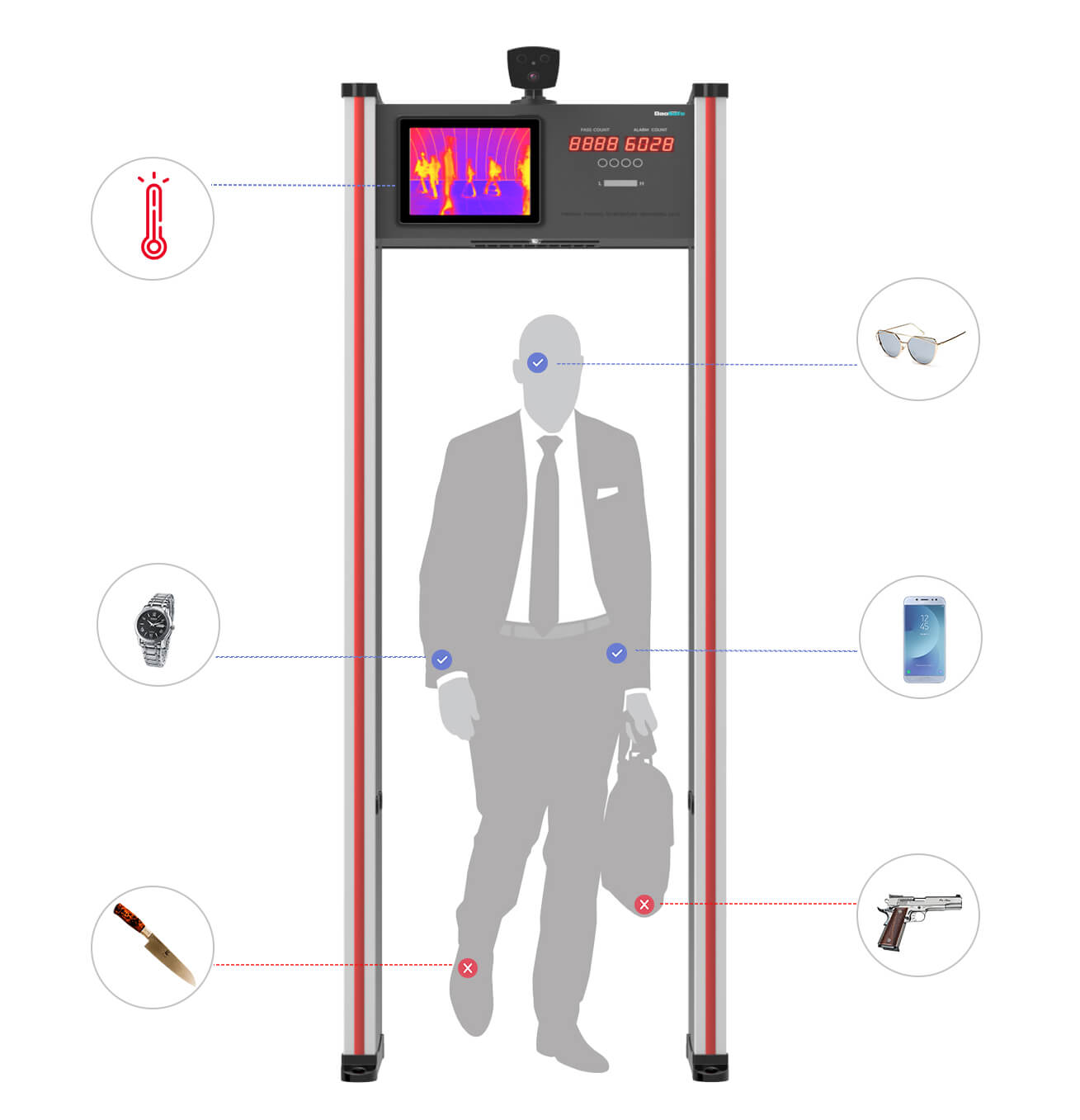

This equipment can not only measure whether the body temperature is normal or not, but also detect the metal objects, like guns, knives, phones, keys, glasses, battery…

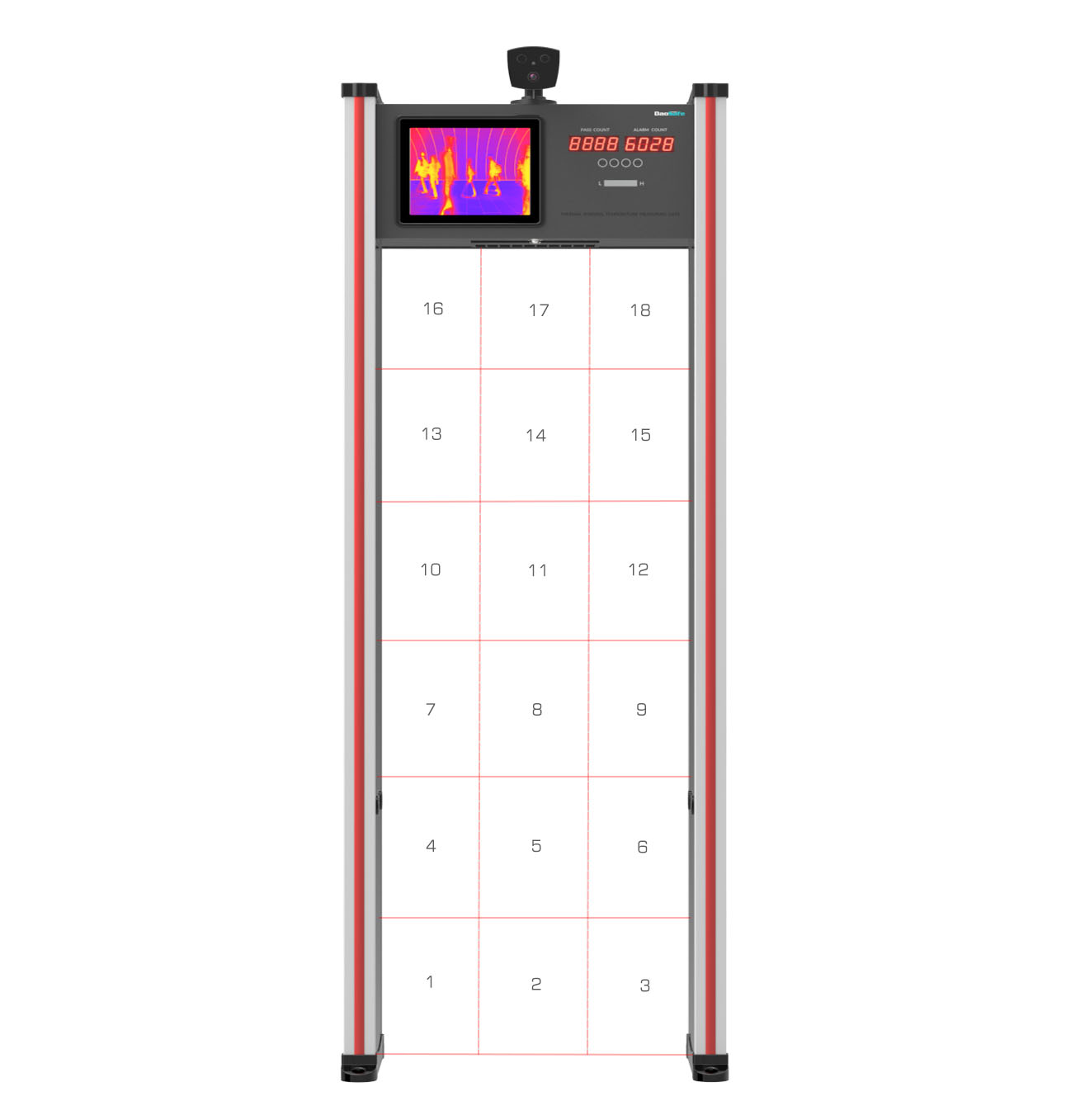

18 Detection Defense Zones (Standard)
Temperature Detection Distance

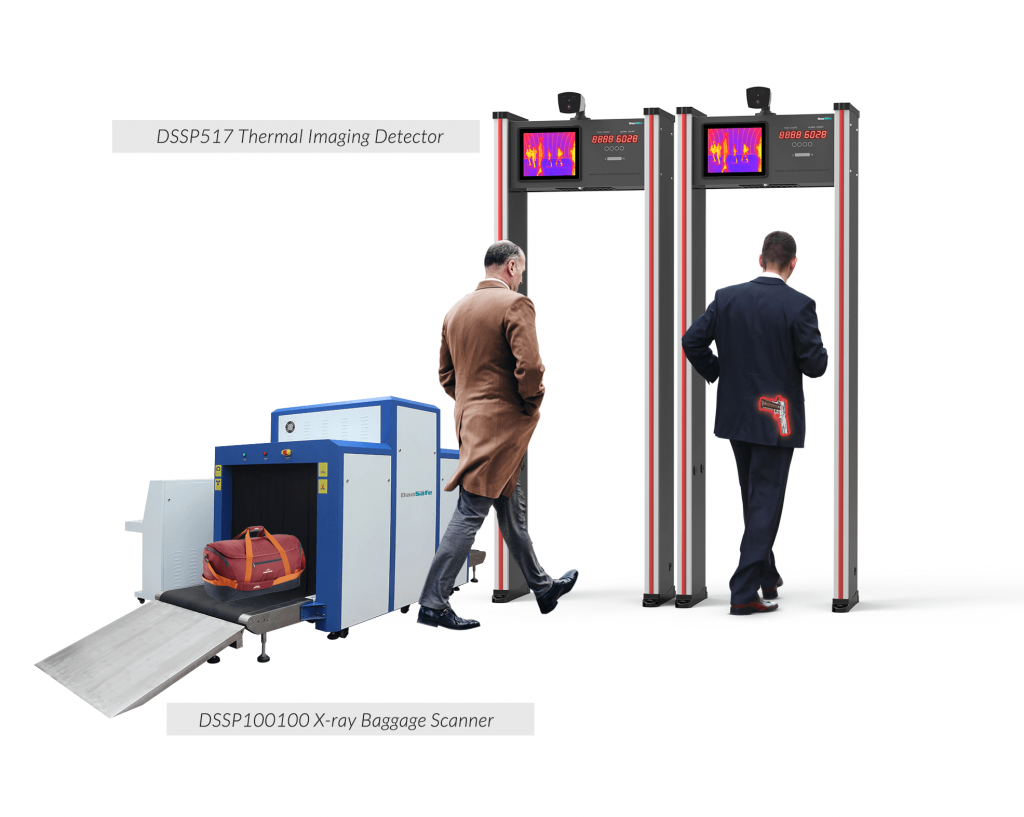

Access Solutions

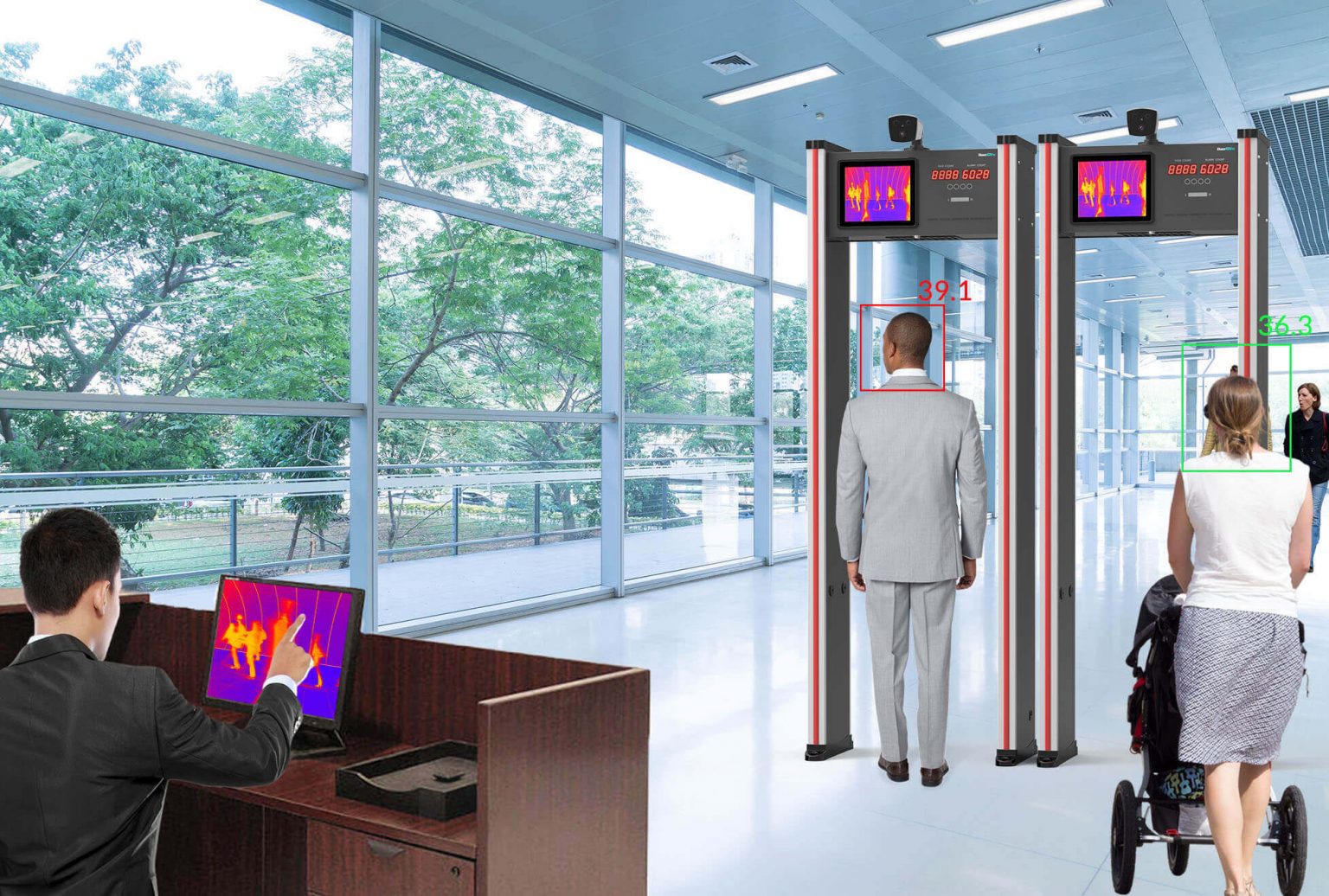

DSSP517 with temperature and metal detection functions can be widely used in public places such as airports, railway stations, subway stations, hospitals, banks, commercial supermarkets, conference centers, schools, industrial parks...
Workshop Show
Features of Walk-through Metal Detector
- Ultra-high detection sensitivity, excluding the influence of belt buckles, leather shoes and bras, It could detect precious metals such as copper, aluminum, and zinc above 150 grams, or controlled knives and guns.
- Reserved communication interface, can be connected with computer, camera, three rollers, monitoring, statistical detection, adjust the security gate parameters.
- Two sides of the door body are equipped with LED lights, which can visually display the area where prohibited items are located by positioning lights.
- Comply with international safety standards, it is harmless to heart pacemaker wearers, pregnant women, magnetic media, etc.
- Bilateral contraption infrared can accurately detect the number of people passing through and alarm number.
- Use the remote control to set the parameters. The parameters can be password protected, which can’t be operated by unauthorized personnel.
- Can be connected to a matching temperature screening comprehensive management software through a network to observe high-quality thermal imaging and visible video in real time.

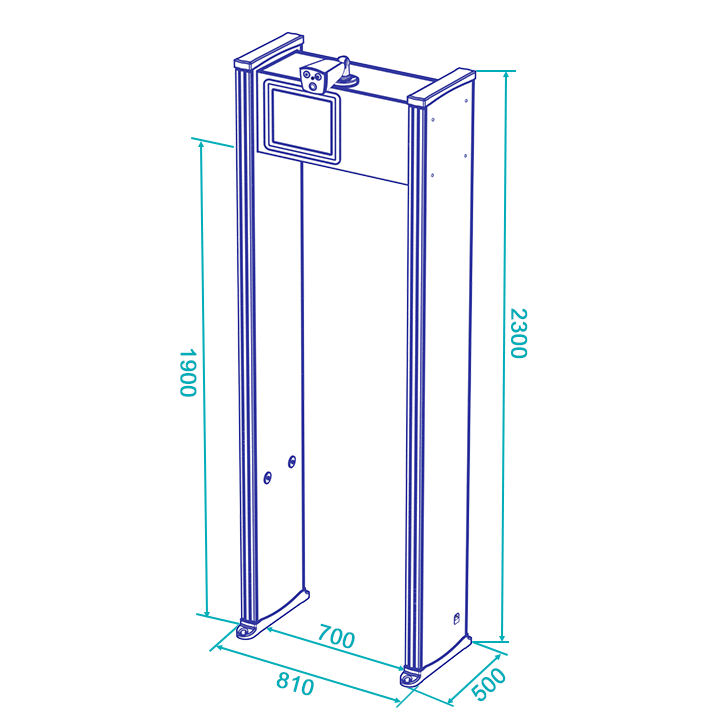

Product Dimension
All the details and dimensions can be customized according to your project site
Infrared thermal camera
Pass and alarm count
Thermal imaging touch panel
Alarm bars
Infrared sensors
Power supply socket
Product Parameters
| Model No. | DSSP517 |
|---|---|
| Brand | Daosafe Security |
| Framework Material | PVC shell |
| Outer Dimension | 2300(H)×810(W)×500(D) mm |
| Inner Dimension | 1900(H)×700(W)×500(D) mm |
| Gross Weight | 80kg |
| Touch Panel | AC187V-242V 50/60Hz |
| Power Supply | 187V~242VAC, 50/60Hz |
| Web Client Language | English, Chinese |
| Protective Level |
Thermal infrared imaging camera: IP66 Walkthrough detector: IP53 |
| Power Consumption | <35W |
| Operation Temperature |
Thermal infrared imaging camera: 10℃ to 45℃ Walk-through detector:-20℃ to 85℃ |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Detection Defense Zone | 18 zones standard |
Videos
Thermal Imaging Detector
Installation Tutorial Guide
Temperature & Metal Testing
Integrated with Turnstile Gate
Documents Download

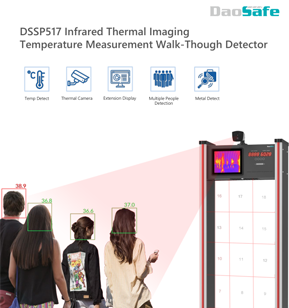

Datasheet
DSSP517 Infrared Thermal Imaging Temperature Measurement Walk-Through Detector
File size : 2.18 MB
