Temperature Measurement Face Recognition Terminal
Model DS-F861T
- Alarm with High Temperature
- 20,000 Faces and 200,000 Records
- High Speed ldentification
- Accuracy Rate: 99.99%
- 7-Inch lPS Full-view and HD Display Screen
- Body temperature + face recognition completed in 0.3 seconds
- Temperature measurement distance: the recognition distance is 0.5-1m
How Does It Work?
- Infrared Array Body Temperature Sensor
- Celsius / Fahrenheit Display
- Seven Languages Options
- Megapixel HD Camera
- High Speed Identification
- Accuracy Rate: 99.9%
- 20,000 Faces Capacity
- 200,000 Records
- Multiple People Simultaneous Recognition
- Voice Prompt
- Online Update
- Access Control Function
- Two Operation Modes: Touchscreen / PC Software
Features of the DS-F861T Terminal
- Temperature detection, the infrared array body temperature sensor, no entry with high temperature.
- Body temperature + face recognition completed in 0.3 seconds.
- Temperature measurement distance: the recognition distance is 0.5-1m.
- Adopts the temperature sensor of Belgian Melexis infrared matrix.
- 7-Inch IPS full-view and high-definition display screen (1280x800).
- Multiple people simultaneous recognition, 1:N / 1:1 can identify four people at the same time.
- ≤0.5 second high speed identification, 99.9% accuracy rate, wide dynamic 2 Mega pixel HD camera, 360-Degree biometrics liveness recognition.
- Built-in card reading module, support Mifare card.
- USB communication port, can insert USB disk to import data, can use USB disk to upgrade and backup data.
- ABS material body, waterproof & smog-proof, stable and durable.
Product Details
Details decide the quality and results, we will create more superior-quality products to satisfy our customers
Plastic Body
Not easy to deformation, stable and durable
HD LCD Display Screen
7-Inch IPS Full-View and HD Display Screen (1280×800)
USB Communication Port
can insert USB disk to import data
and use U disk to upgrade and backup data
Voice Prompt Function
opening door prompt, alarm prompt
Mifare Card Reading Function
built-in card reading module, support Mifare card,
CPU card, ID card and so on
HD Binocular Camera
high speed identification,liveness detection,wide dynamic strong light suppression (independent ISP processing)
options
13 Languages

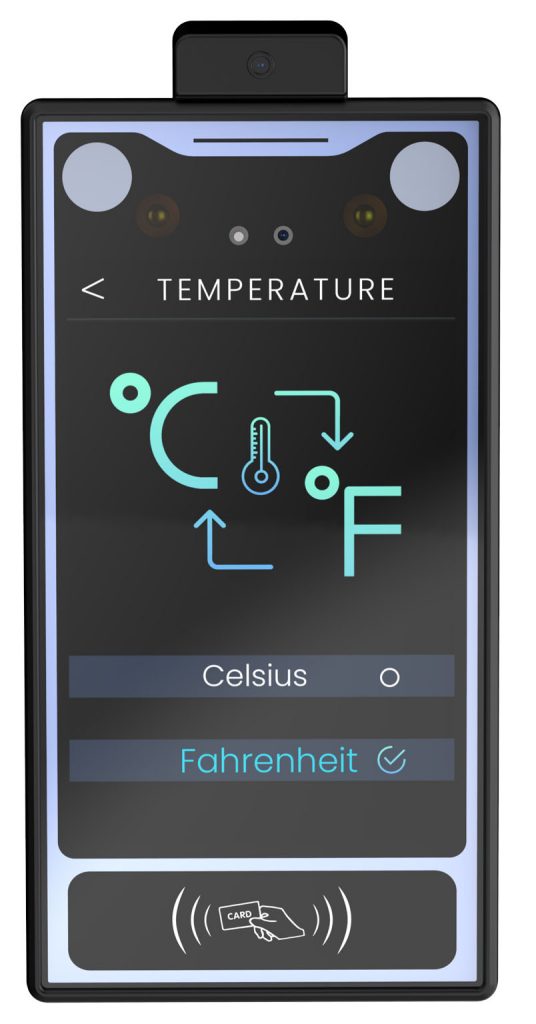

Celsius/Fahrenheit
Based on the general preference of your country, you can easily and freely switch temperature unit between Celsius (°C) and Fahrenheit (°F).
13 Languages: Simplified Chinese, Traditional Chinese, English, Spanish, Italian, French, Portuguese, Thai, Russian, Japanese, Korean, Arabic, Vietnamese.
Multiple Types
DS-F861T

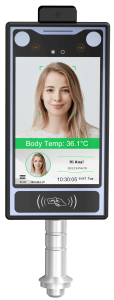

With Bracket

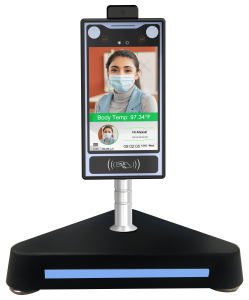

With Table Stand

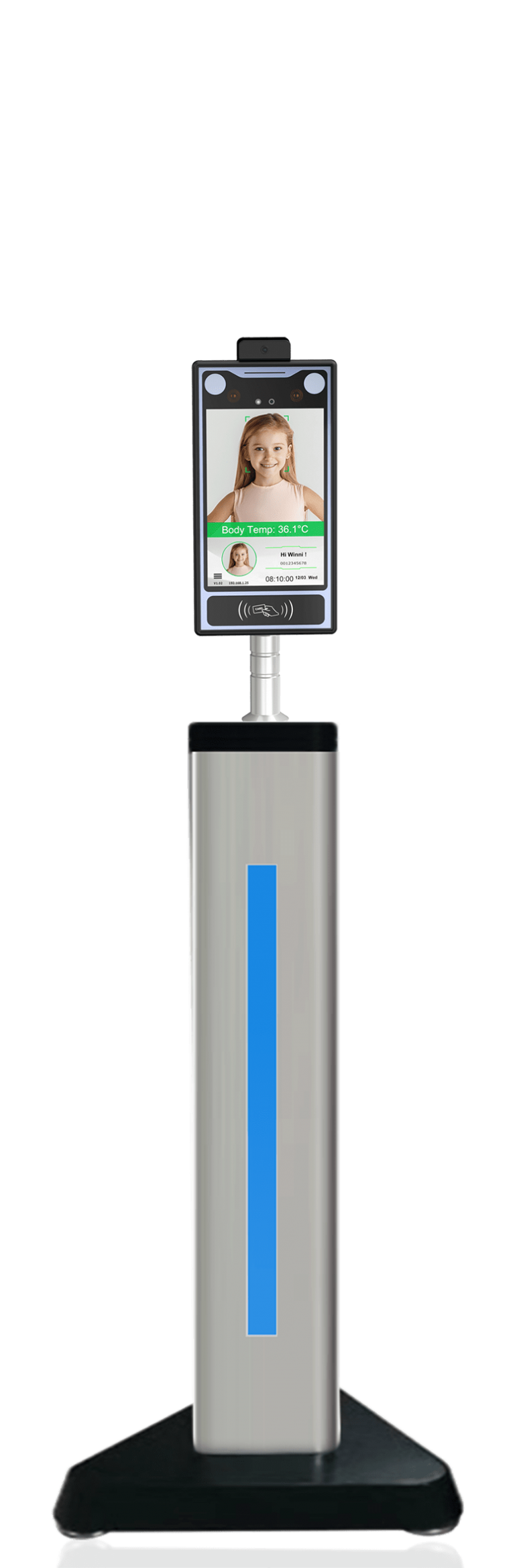

With Led Pillar (Child)

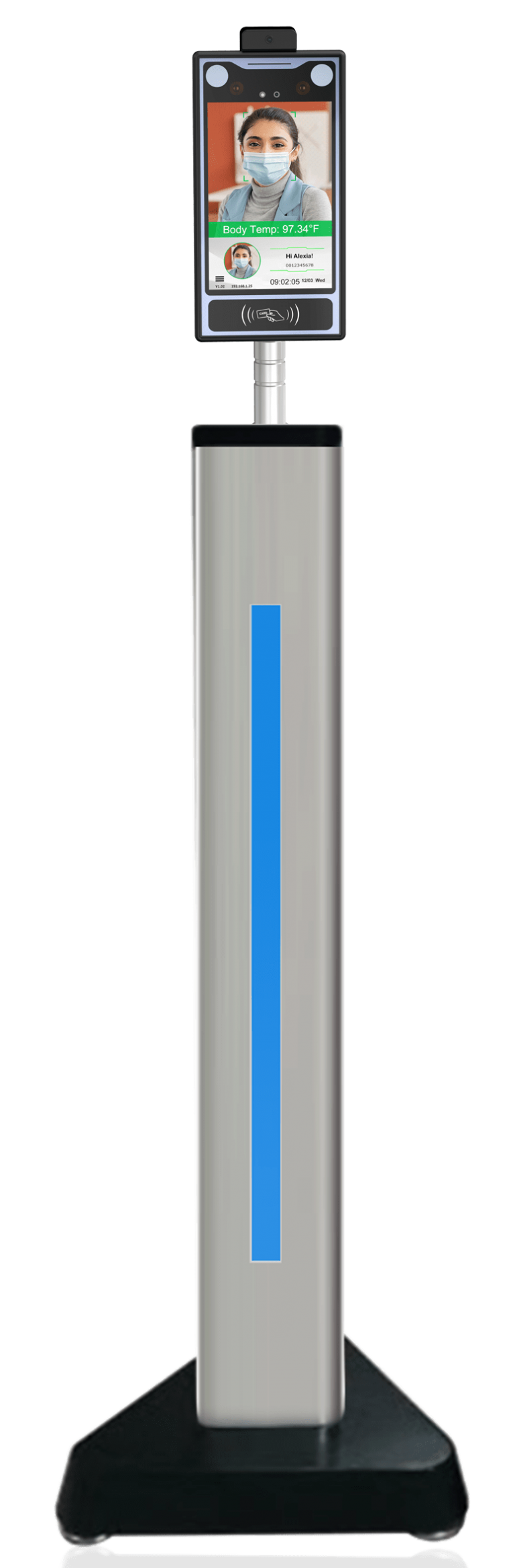

With Led Pillar (Adult)
Applications

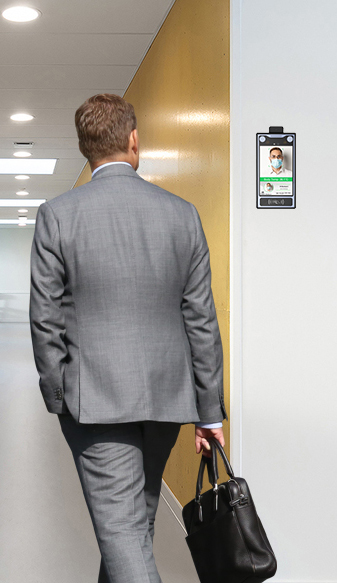

1. Installed on the wall

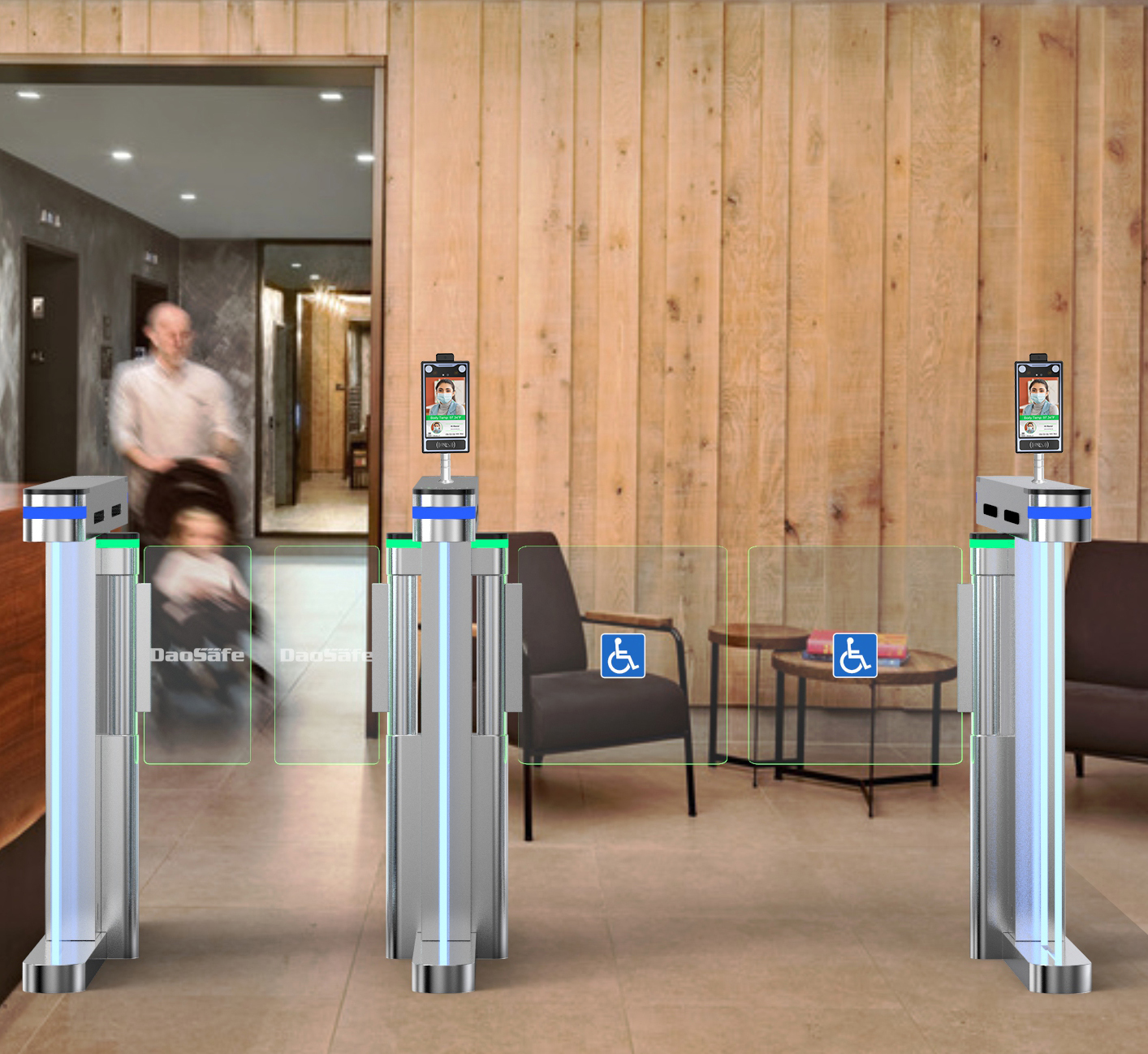

2. Integrated with turnstiles

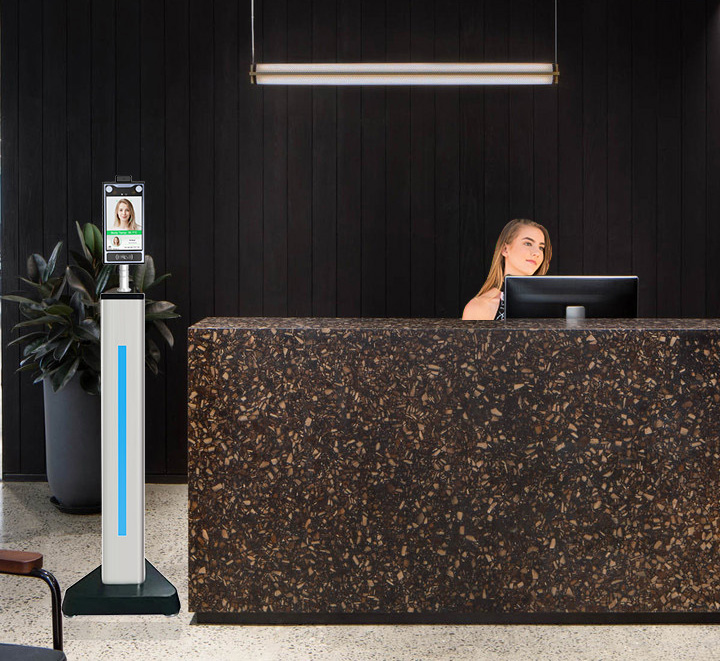

3. Installed on the standing pillar

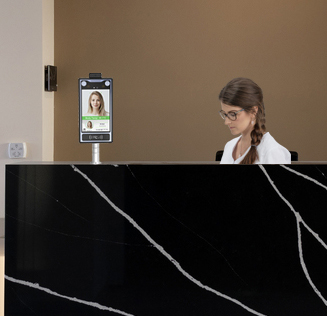

4. Put on the desk
Product Parameters
Model No. | DS-F861T |
---|---|
Brand | Daosafe Security |
Body Material | ABS material body |

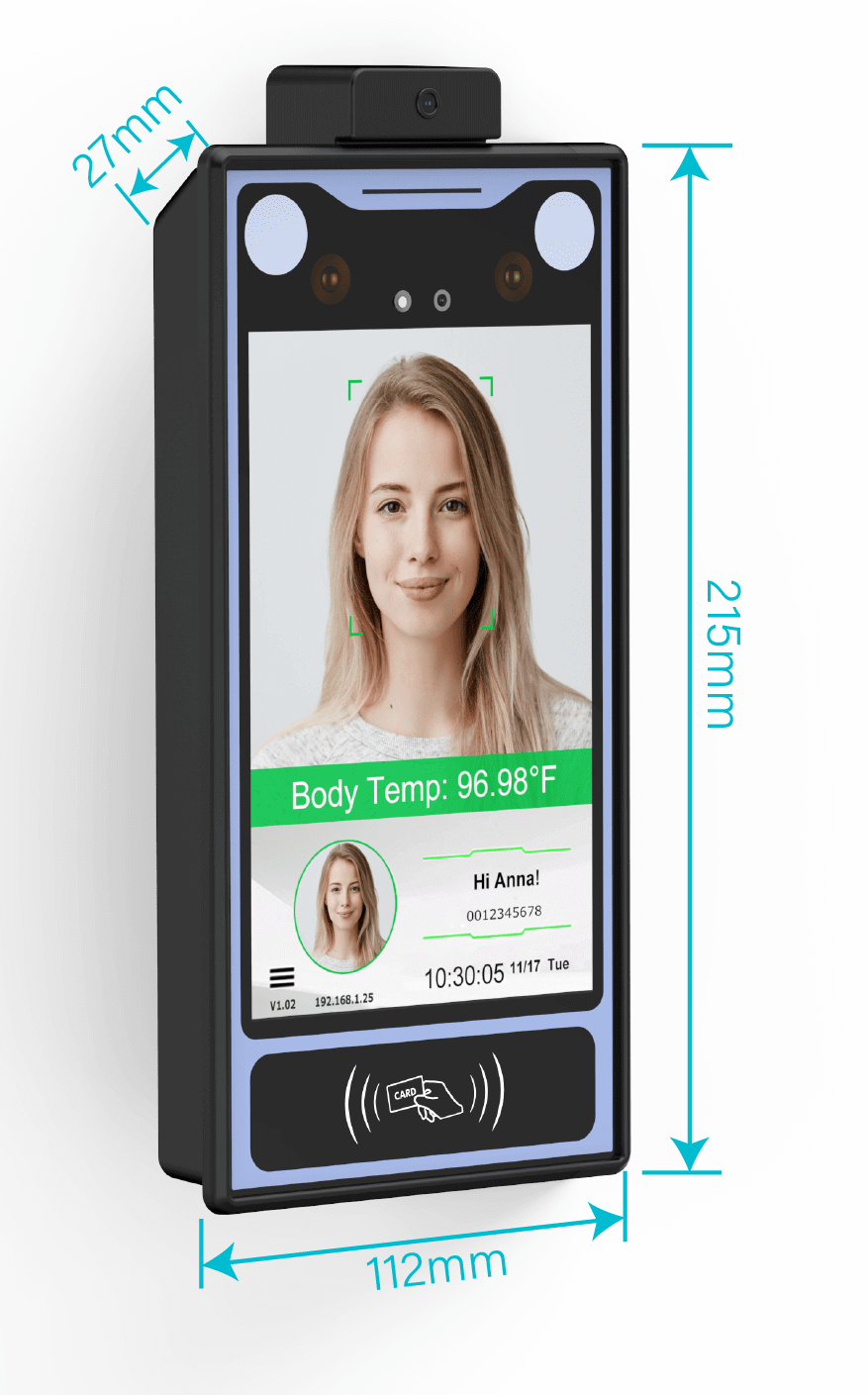

Size | 112x215x27mm |
Weight | 0.45KG |
Display Screen | 7-inch IPS full view HD screen |
CPU | 4 CoreA7 1.2GHZ |
Storage Capacity | 1GB DDR3 + 8GB EMMC |
GPU | MAL400 II |
Communication Way | WIFI communication can be optional |
Operation Mode | Touchscreen/PC software |
Operation System | LINUX |
Camera | Wide dynamic binocular 2 million HD camera |
Liveness Detection | Support |
User Capacity | 20,000 faces + 20,000 cards |
Records | 200,000 records |
Recognition Way | 1:N / 1:1 |
Identification Speed | ≤0.5S |
Wiegand Function | One group of wiegand input/Wiegand output (26/34) |
Working Voltage | DC12V/2A (DC9V-14V) |
Working Temperature | -10℃ to 70℃ |
Working Humidity | 10%-90% RH |
Support Language |
Chinese, English, Spanish, Italian, French, Portuguese, Thai, Russian, Japanese, Korean, Arabic, Vietnamese. |
Related Videos
Usage Scenarios Demo
Operation Modes
Language and Celsius/Fahrenheit Switch
Installation Procedure
Use Case in American School
Documents Download
Datasheet
DS-F861T Face Temperature Measurement Access Control Terminal Datasheet
File size : 3.23 MB
