X-Ray Baggage Scanner
X-ray baggage scanner used in penetrate inspection, can detect the object metal structure, display where is invisible to the naked eye. Usually used in: electronic factories, exhibition, shoe factories, toy factories, courts, railway stations, customs, terminal and large-scale activities package security check.
Multiple models are available in different sizes

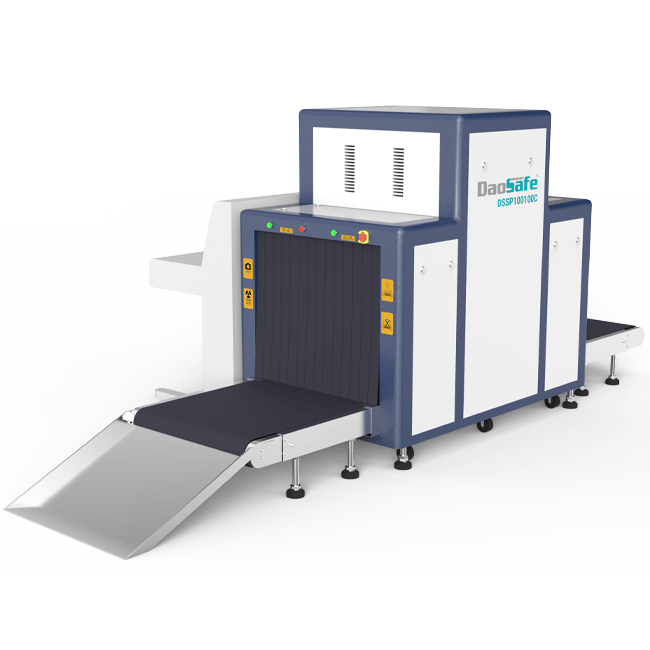

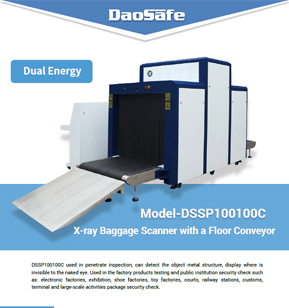

Model DSSP100100C

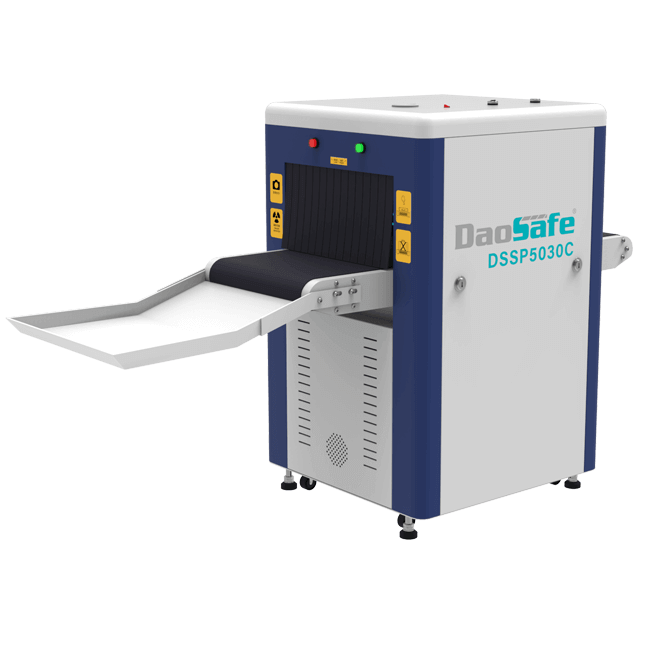

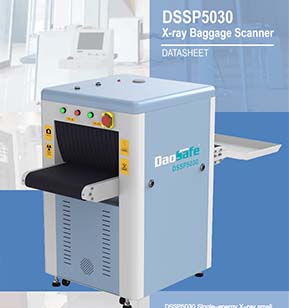

Model DSSP5030C
High Resolution Display
L-Shaped photodiode array (Dual-energy), 12bit deep, X-ray sensor, 4096 image grey level, 24bit true color display. High resolution 19 inch LCD monitor, and image max resolution 1024 * 1280 pixel, making the images more clearly.
1000
Image Storage
Storage 60000 pictures in real time, built-in USB
transmission JPG&BMP format function.
Network Interface
Can be connected to the LAN, several
terminals check baggage simultaneously.
terminals check baggage simultaneously.
Image Processing System
- Super image enhancementImage: details are clearer.
- Edge enhancement: the outline of the object is much clearer.
- High penetration display: improve the contrast of bright areas in the image, making the easy-to-penetrate area clearer.
- Low penetration display: improve the contrast of dark areas in the image, making the difficult-to-penetrate area clearer.
- Magnifying glass: partial zoom function.

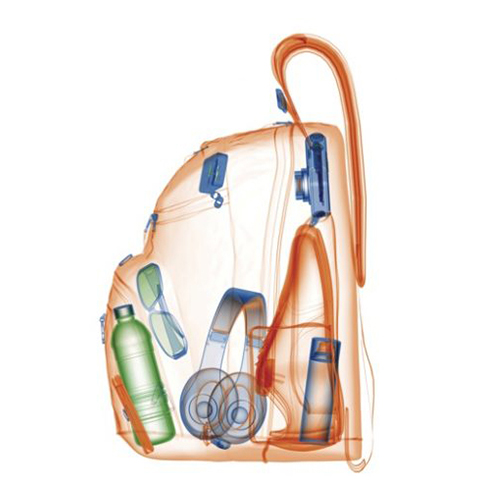

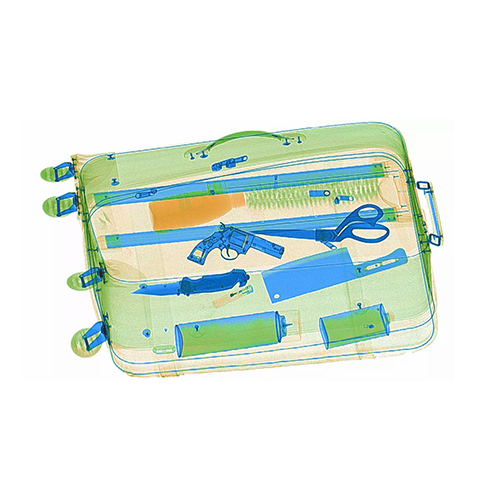

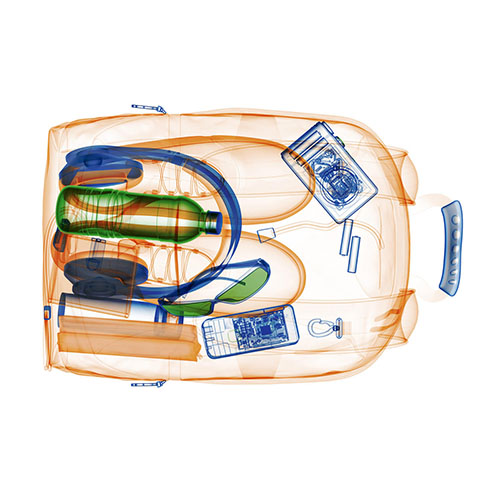

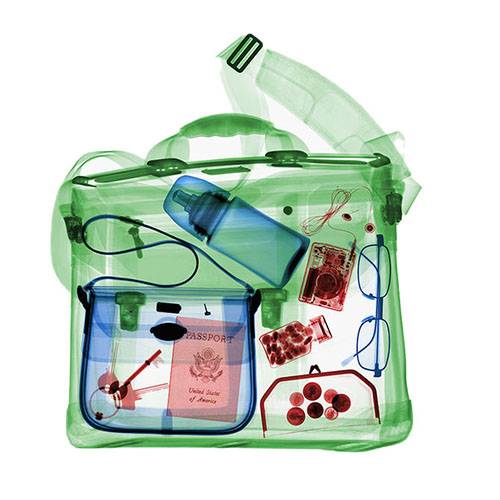

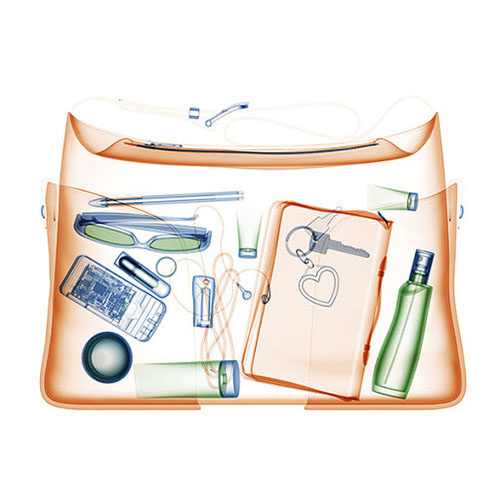

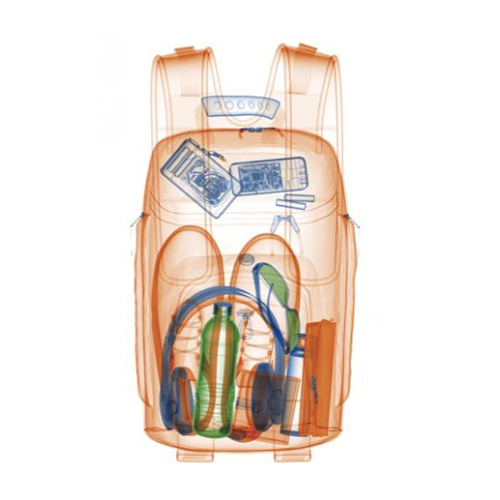

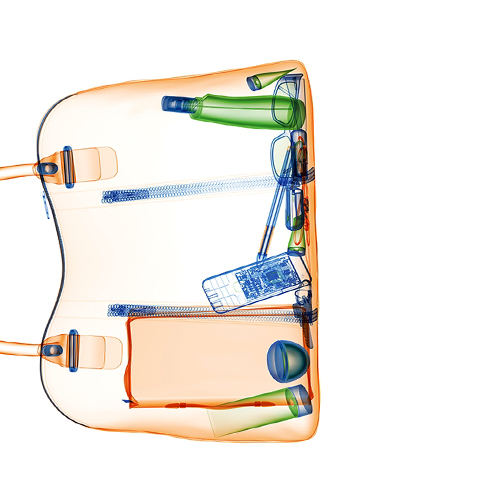

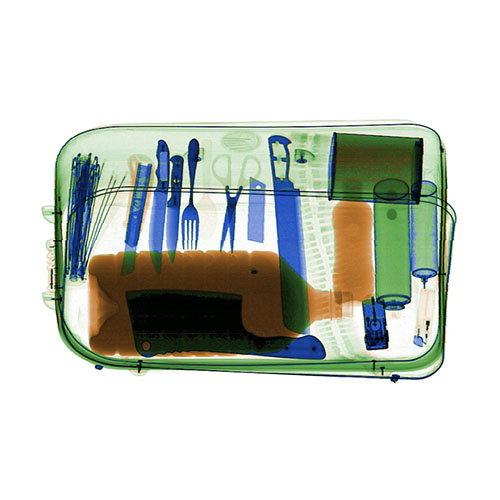

- Multi-energy color: organic objects in orange, inorganic objects in blue, mixture in green.
- Brighten/Darken: increase/decrease the brightness of the image.
- High energy/low energy: two energy switching display.
Image Playback
Support display the first 20 images and perform any processing on the image.
Threat Image Projection Function
Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability

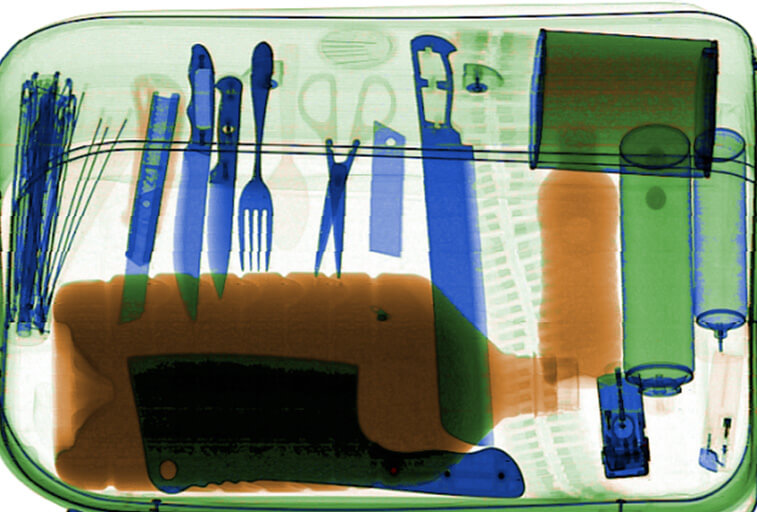

Drugs Explosives Aided Detection
Assist in detecting typical dangerous objects like the explosives, drugs.
Product Parameters
Model No. | DSSP100100C | DSSP5030 |
---|---|---|
Brand | Daosafe Security | Daosafe Security |
Type | Dual-energy | Single-energy |
Color | Deep Blue | Deep Blue |
Tunnel Size | 1010(W)×1010(H)mm | 500(W)×300(H)mm |

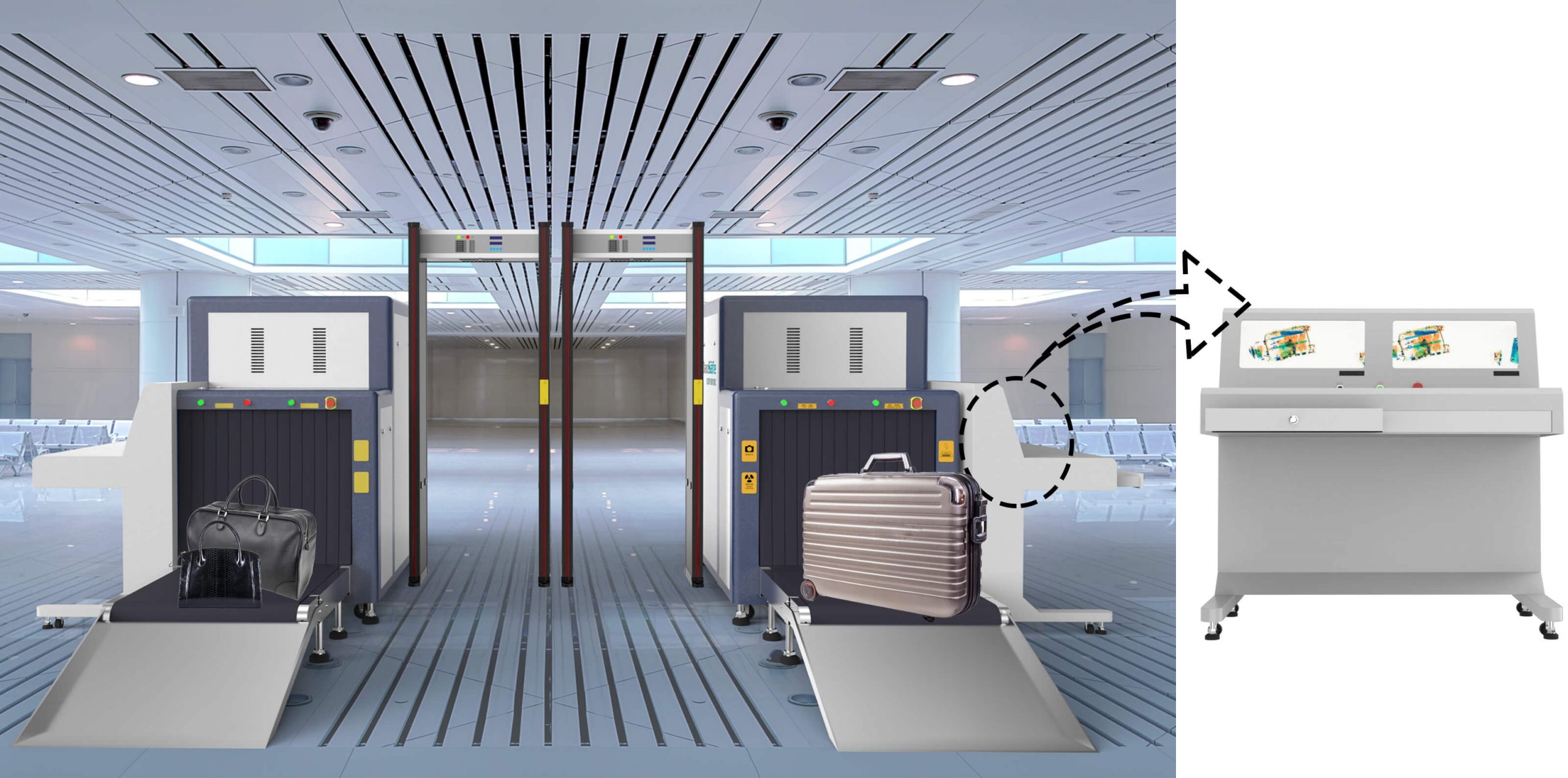

Work Station | Dual Screen | Single Screen |
Work Station Size | 152cm(L)x77cm(W)x138cm(H) | 76cm(L)x77cm(W)x138cm(H) |
Gross Weight | 1100kg | 350kg |
Conveyor Speed | 0.22m/s | 0.22m/s |
Conveyor Max Load | 200kg belt | 180kg belt |
Dose per Inspection | less than 1.0μGy/h | less than 1.0μGy/h |
Wire Resolution | 0.0787mm Copper Wire | 0.0787mm Copper Wire |
Spatial Resolution | Level: dia1.0mm, Vertical: dia1.0mm | Level: dia1.0mm, Vertical: dia1.3mm |
Penetration | 43mm Steel | 14mm Steel |
Film Safety | Guarantee ISO1600 Film | Guarantee ISO1600 Film |
X ray Leakage | less than 0.2μGy/h | less than 0.2μGy/h |
Monitor | Philip high resolution 19inch color LCD display | Philip high resolution 19inch color LCD display |
Operation Temperature/Humidity | 0°C-45°C/20%-95%(Non-condensing) | 0°C-45°C/20%-95%(Non-condensing) |
Storage Temperature/Humidity | -20°C-60°C/20%-95%(Non-condensing ) | -20°C-60°C/20%-95%(Non-condensing ) |
Operation Power | 220VAC(±10%)50±3Hz | 220VAC(±10%)50±3Hz |
Power Consumption | 1.0KW(Max) | 1.0KW(Max) |
