Walk-through Metal Detector With Temperature Measurement DSSP516
- Melexis original medical infrared detector imported from Belgium is adopted, with long detection distance, high precision and stable quality performance, which is highly configured in China.
- Temperature monitoring can be conducted on the personnel passing through the security gate. Test distance: 0.05-0.3 m, test height: not less than 1.5 m.
- Can detect the size of half a paper clip of metal, no leakage and string.
- Suitable for controlled knives and guns and other dangerous goods safety inspection, widely used in prisons, courts, schools, hospitals, electronics companies, port, the passenger, exhibition halls, convention centre, major celebrations, concerts and other important places. Inquire Now
Detection Performance Display
This equipment can not only measure whether the body temperature is normal or not, but also detect the metal objects, like guns, knives, phones, keys, glasses, battery…
18 Detection Defense Zones
Temperature Detection Distance
Workshop Show
Previous
Next
Features of Walk-through Metal Detector
- Adopts international advanced electromagnetic compatibility design and shock resistant design, has a high sensitivity, strong anti-interference ability and aseismatic ability.
- Reserved communication interface, can be connected with computer, camera, three rollers, monitoring, statistical detection, adjust the security gate parameters.
- Two sides of the door body are equipped with LED lights, which can visually display the area where prohibited items are located by positioning lights.
- Comply with international safety standards, it is harmless to heart pacemaker wearers, pregnant women, magnetic media, etc.
- Bilateral contraption infrared can accurately detect the number of people passing through and alarm number.
- Sensitivity can be adjusted as needed, a total of 1000 sensitivity.
- 9 types of alarm sound can be selected, each of which has an 8-level adjustable tone and an adjustable alarm time.
- Use the remote control to set the parameters. The parameters can be password protected, which can’t be operated by unauthorized personnel.
Product Dimension
All the details and dimensions can be customized according to your project site
Passenger number and alarming number
Detection zones indicator
Alarm bars
Infrared sensors
Power supply socket
Temperature detection
Product Parameters
Model No. | DSSP516 |
---|---|
Name | Metal detector with temperature measurement |
Brand | Daosafe Security |
Outer Dimension | 2210(H)×840(W)×475(D) mm |
Inner Dimension | 1980(H)×710(W)×400(D) mm |
Gross Weight | 70kg |
Working Voltage | AC187V-242V 50/60Hz |
Power | <15W |
Operation Frequency | Adjust according to the installation environment |
Working Temperature | -10 °C ~ 40 °C |
Operation Humidity | 0 ~ 95% (No freeze) |
Detection Range | Metal objects and body temperature |
Detection Defense Zone | 18 zones (Standard) |
Output Connection | PC connection (Optional) |
Output Connection | Turnstile gate connection (Optional) |
Videos

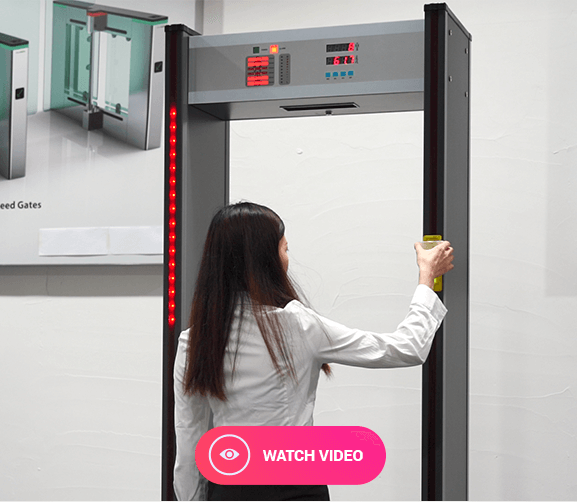

Metal Objects Detecting
Integrated with Turnstile Gate
Installation Tutorial Guide
