DS-L500 Bluetooth Smart Door Lock
Mifare Card / Password / App (Bluetooth) / Remote Control / Mechanical Key
- DS-L500 Bluetooth &App Smart Lock is a modern and compact stylish lock that features Pin code and Bluetooth access to unlock the door.
- Unlock using your smart phone, change pin-codes and download unlocking records from the TTLock App.
- The lock body is made of Zinc Alloy+ Acrylic Panel which is smooth, beautiful, anti-rust and durable
- The lock is powered with Long Lasting Batteries, up to 4 standard batteries can be installed, effectively powering the lock for 12 months. It doesn’t need any external power source.
- In case of low power, the mechanical keys can open the door and please replace a new battery.
- The lock suitable for inward and outward opening doors of a thickness between 35–55 mm.
Product Parameters
| Model No. | DS-L500 |
|---|---|
| Brand | Daosafe Security |
| Framework Material | Zinc alloy+304 stainless steel |
| Mortise | American standard single latch german standard mortise (Optional) |
| Identification Mode | Smart phone, mifare card, passcode |
| Password Capacity | 150 |
| Card Capacity | 200 |
| Card Module | M1(13.56 MHz) |
| Wireless Module | BLE4.1 |
| App Language | Multilingual support |
| Remote Access | Bluetooth gateway required |
| Operating Temperature | -20°C - 70°C |
| Batteries | 4xAA alkaline battery (Not supplied) |
| Battery Life | Over 10000 times (Above 1 year) |
| Door Thickness | 35-55 mm |
| Backset | Adjustable 60 or 70 mm (Only for single latch) |
| Front Panel Dimensions | Front panel - 68(W)×168(L)×25(D) mm |
| Back Panel Dimensions | Back panel - 68(W)×168(L)×25(D) mm |
| Packaging Weight | 3kg |
| Color Type | Gold/Silver/Antique Copper/Antique Brass |

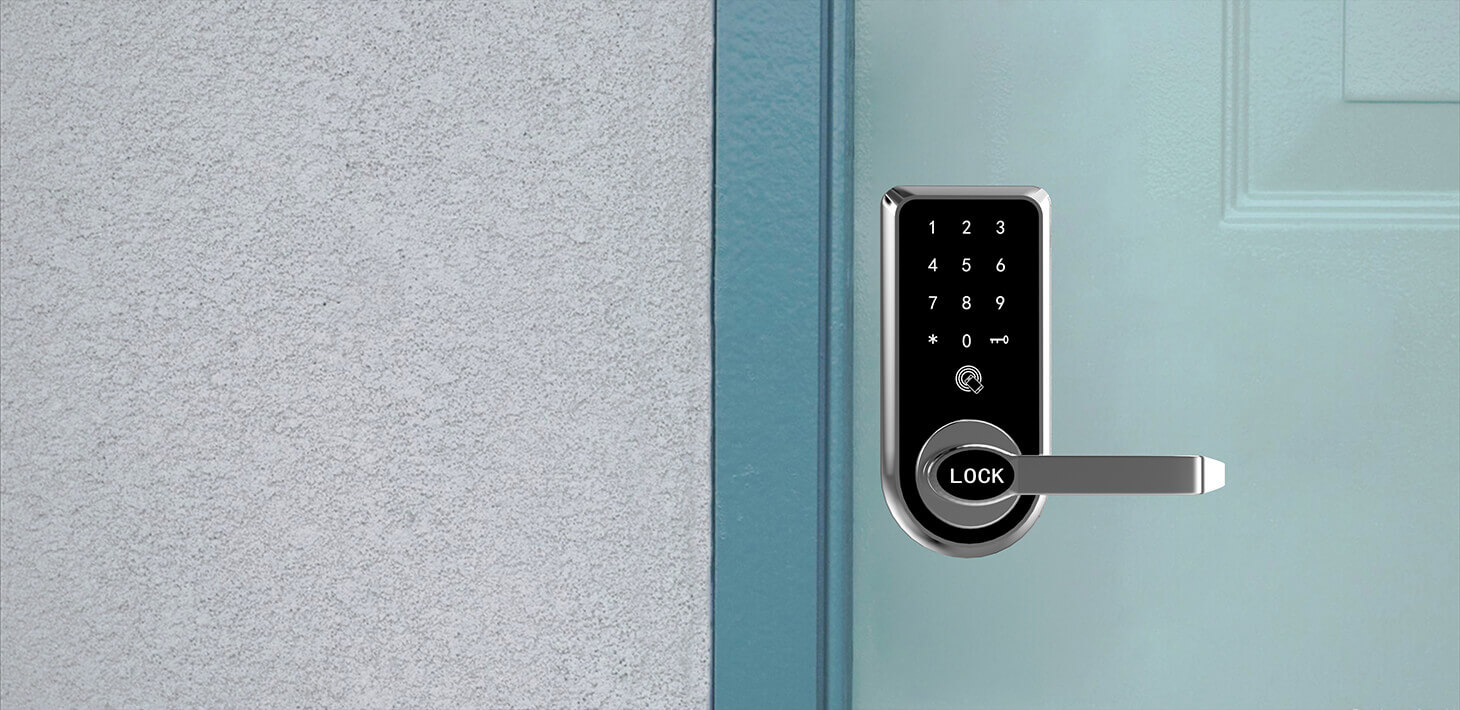

Easy Installing, No Need Any Special Electrician Skills

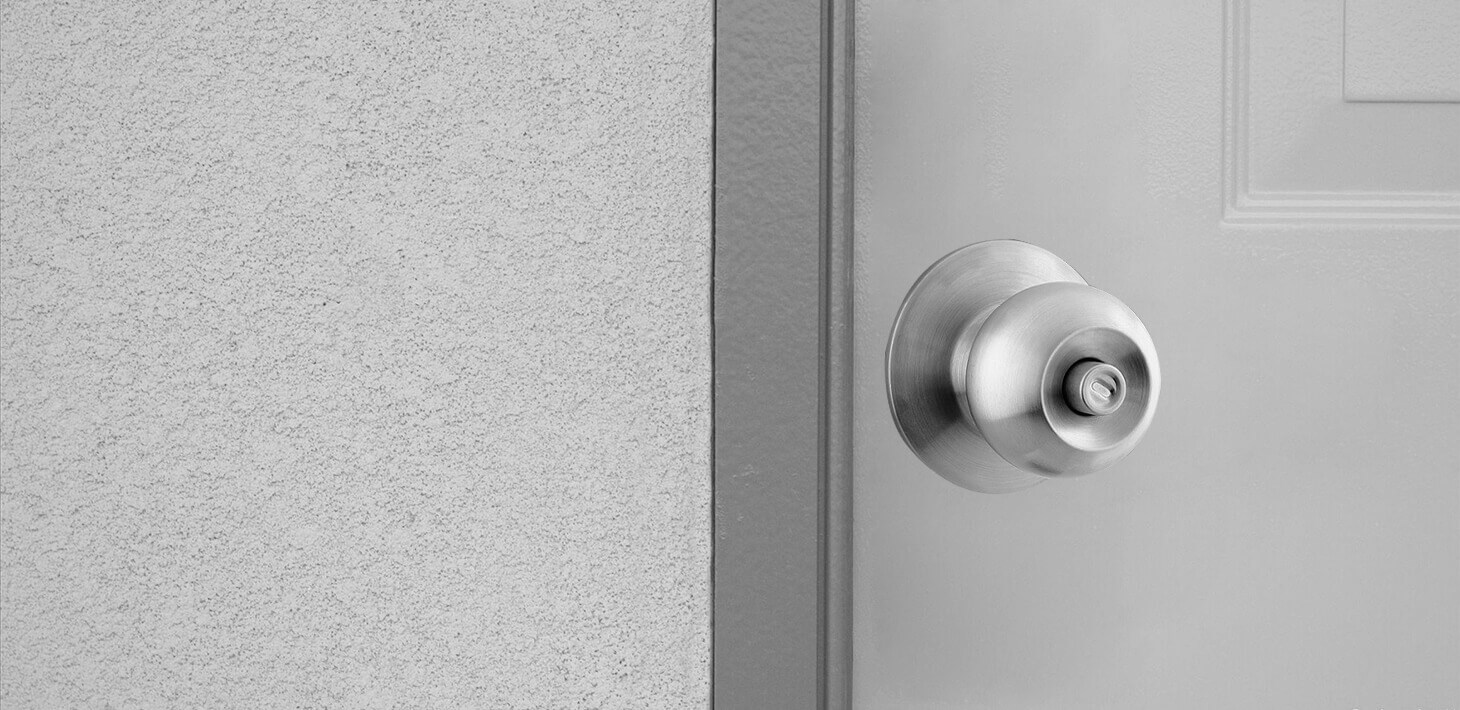

Replacement for Existing Ball Door Lock , Only for Single Latch.
