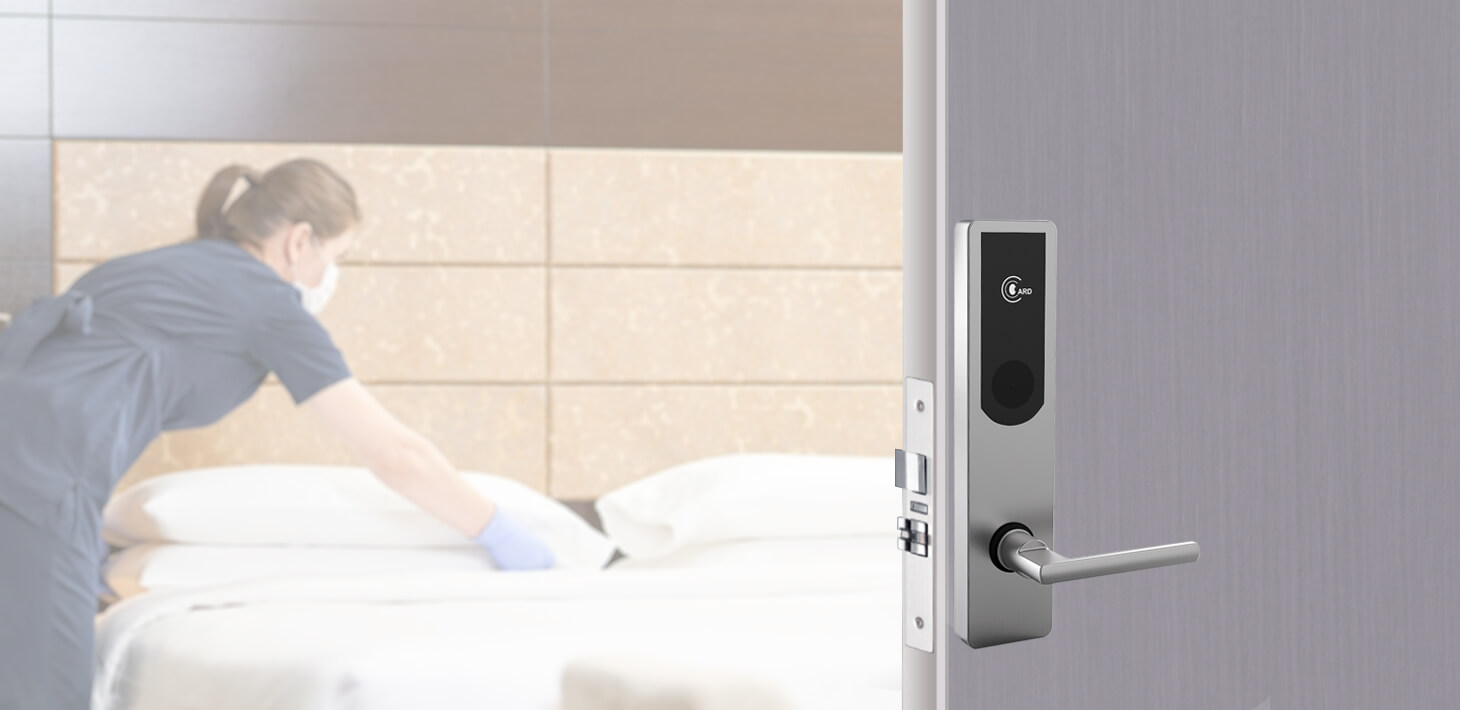

DS-L300H Hotel Door Lock
Mifare Card / Mechanical Key
- DS-L300H Hotel lock is a multipurpose lock which is intelligent and convenient door entrance solutions.
- The lock body is made of Zinc Alloy+ Acrylic Panel which is smooth, beautiful, anti-rust and durable.
- The lock is powered with Long Lasting Batteries, up to 4 standard batteries can be installed, effectively powering the lock for 12 months. It doesn’t need any external power source.
- In case of low power, the mechanical keys can open the door and please replace a new battery.
- The lock suitable for inward and outward opening doors of a thickness between 35–55 mm.
Product Parameters
| Model No. | DS-L300H |
|---|---|
| Brand | Daosafe Security |
| Framework Material | Zinc Alloy+304 stainless steel |
| Mortise | China standard anti-theft mortise |
| Identification Mode | Mifare card |
| Card Capacity | 200 |
| Card Module | 125khz IC card, M1(13.56 MHz optional) |
| Operating Temperature | -20°C - 70°C |
| Batteries | 4xAA alkaline battery (Not supplied) |
| Battery Life | Over 10000 times (Above 1 year) |
| Door Thickness | 38-55 mm |
| Front Panel Dimensions | Front panel - 68(W)×168(L)×25(D) mm |
| Back Panel Dimensions | Back panel - 68(W)×168(L)×25(D) mm |
| Packaging Weight | 3.2kg |
| Color Type | Silver/Gold/Black |
Easy Installing, No Need Any Special Electrician Skills
Replacement for Existing Ball Door Lock , Only for Single Latch.
Documents Download
Datasheet
DS-L300H Hotel Door Lock
File size : 0.8 MB
