Temperature Measurement
Face Recognition Terminal
Alarm with High Temperature

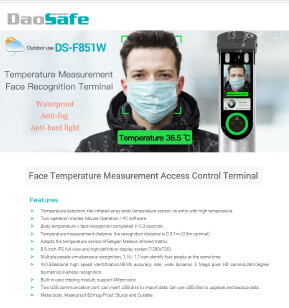

Face Temperature Measurement Access Control Terminal DS-F851W
- Infrared Array Body Temperature Sensor
- Celsius / Fahrenheit Display
- Seven Languages Options
- Megapixel HD Camera
- High Speed Identification
- Accuracy Rate: 99.9%
- 20,000 Faces Capacity
- 200,000 Records
- Multiple People Simultaneous Recognition
- Voice Prompt
- Online Update
- Access Control Function
- Two Operation Modes: Touchscreen / PC Software
Features of Recognition Terminal
- Temperature detection, the infrared array body temperature sensor, no entry with high temperature.
- Body temperature + face recognition completed in 0.3 seconds.
- Temperature measurement distance: the recognition distance is 0.3-1m (0.5m optimal).
- Adopts the temperature sensor of Belgian Melexis infrared matrix.
- 5.5-Inch IPS full-view and high-definition display screen (1280x720).
- Built-in card reading module, support Mifare card.
- Two USB communication port, can insert USB disk to import data, can use USB disk to upgrade and backup data.
- Multiple people simultaneous recognition, 1: N / 1:1 can identify four people at the same time.
- Metal body, waterproof &smog-proof, sturdy and durable.
-
≤0.5Ssecond high speed identification,99.9% accuracy rate, wide dynamic 2 Mega pixel HD camera,360-Degree biometrics
liveness recognition.
Product Details
Details decide the quality and results, we will create more superior-quality products to satisfy our customers
Seven Languages Options
Considering the feedback and keeping the heart to service more and more customers, the face and temperature terminal adds Spanish, French, Italian, Portuguese and Russian five languages on the basis of Chinese and English. DAOSAFE SECURITY always keep improving and innovating our products to meet customer demand.
Celsius / Fahrenheit Display
Based on the general preference of your country, you can easily and freely switch temperature unit between Celsius (°C) and Fahrenheit (°F).
Metal Body
sturdy and durable
HD LCD Display Screen
5.5-inch IPS full-view and HD display screen（1280×720)
Two USB Communication Port
can insert USB disk to import data
and use U disk to upgrade and backup data
HD Binocular Camera
high speed identification, liveness detection, wide dynamic strong light suppression (independent ISP processing)
Mifare Card Reading Function
built-in card reading module, support Mifare card,
CPU card, ID card and so on
Voice Prompt Function
opening door prompt, alarm prompt
Product Dimensions
Intelligent light
Binocular camera
Identification properties panel
Reading area
Belgian infrared temperature probe
HD display screen
Product Parameters
| Model No. | DS-F851W(outdoor waterproof) |
|---|---|
| Brand | Daosafe Security |
| Body Material | Zinc alloy body |
| Size | 565x100x155mm(DS-F851W) |
| Weight | 1.8KG(DS-F851W) |
| Display Screen | 5.5-inch IPS full view HD screen |
| CPU | 4 CoreA7 1.2GHZ |
| Storage Capacity | 1GB DDR3 + 8GB EMMC |
| GPU | MAL400 II |
| Communication Way | WIFI communication can be optional |
| Operation Mode | Touchscreen/PC software |
| Operation System | LINUX |
| Camera | Wide dynamic binocular 2 million HD camera |
| Liveness Detection | Support |
| User Capacity | 20,000 faces + 20,000 cards |
| Records | 200,000 records |
| Recognition Way | 1:N/1:1 |
| Identification Speed | ≤0.5S |
| Wiegand Function | One group of wiegand input/Wiegand output (26/34) |
| Working Voltage | DC12V/2A (DC9V-14V) |
| Working Temperature | -10℃ to 70℃ |
| Working Humidity | 10%-90% RH |
| Support Language | Chinese, English, Spanish, Italian, French, Portuguese, Russian |
Applications
Different type of application scenarios, differentiated installations
DS-F851W with LED Pillar
DS-F851W Integrated Turnstile Gate
Related Videos
High Temperature Check
Use Case in American School
Operation Modes
Installation Procedure
Language and Celsius/Fahrenheit Switch
Usage Scenarios Demo
