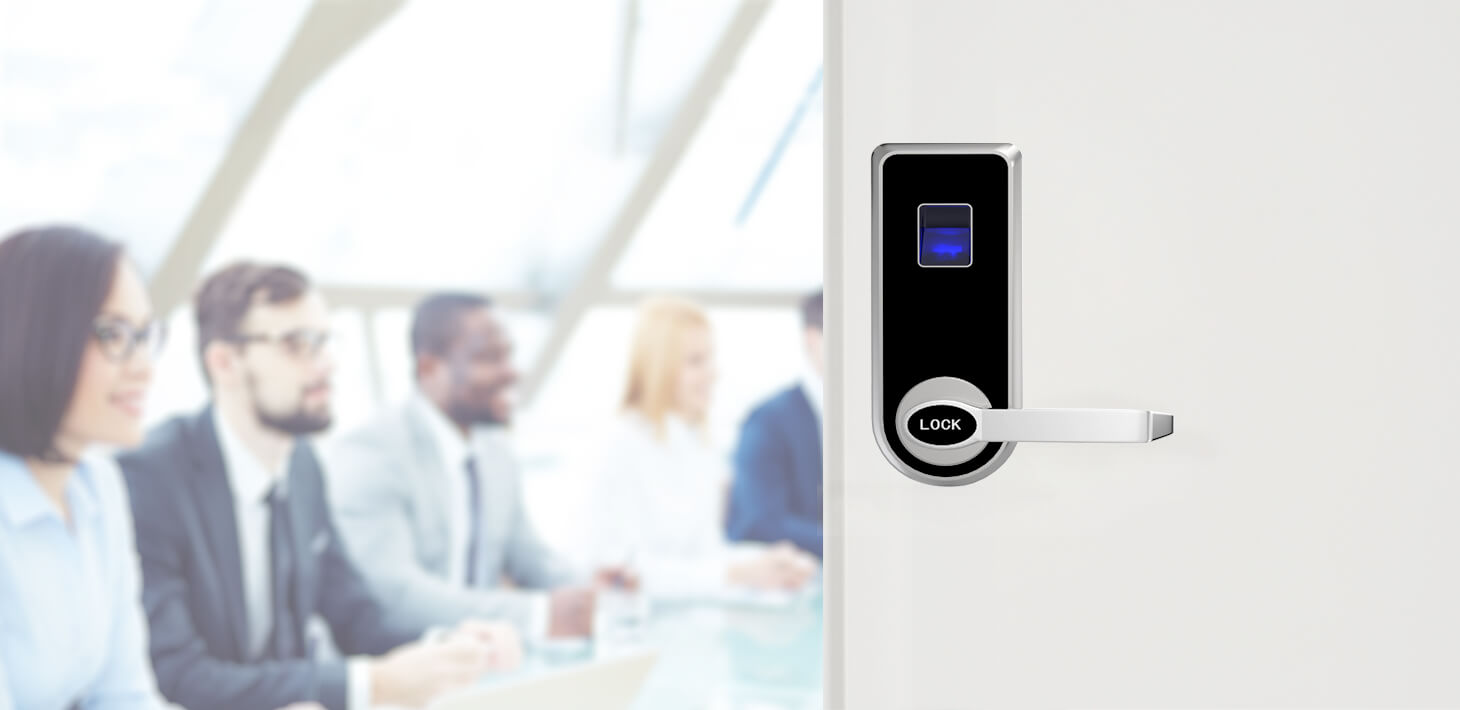

DS-L500F Fingerprint Door Lock
Fingerprint / Mechanical Key
- DS-L500F Fingerprint Door Lock is a modern smart lock with embedded fingerprint recognition technology. And compact stylish lock that features fingerprint access to unlock the door.
- The lock body is made of Zinc Alloy+ Acrylic Panel which is smooth, beautiful, anti-rust and durable
- The lock is powered with Long Lasting Batteries, up to 4 standard batteries can be installed, effectively powering the lock for 12 months. It doesn’t need any external power source.
- In case of low power, the mechanical keys can open the door and please replace a new battery.
- The lock suitable for inward and outward opening doors of a thickness between 35–55 mm.
Product Parameters
| Model No. | DS-L500F |
|---|---|
| Brand | Daosafe Security |
| Framework Material | Zinc alloy+304 stainless steel |
| Mortise | American standard single latch german standard mortise (Optional) |
| Identification Mode | Fingerprint |
| Card Capacity | Admin: 3, Normal user: 297 |
| Operating Temperature | -20°C - 70°C |
| Batteries | 4xAA alkaline battery (Not supplied) |
| Battery Life | Over 10000 times (Above 1 year) |
| Door Thickness | 35-55 mm |
| Backset | Adjustable 60 or 70 mm (Only for single latch) |
| Front Panel Dimensions | Front panel - 68(W)×168(L)×25(D) mm |
| Back Panel Dimensions | Back panel - 68(W)×168(L)×25(D) mm |
| Packaging Weight | 3kg |
| Color Type | Gold/Silver/Antique Copper/Antique Brass |
Easy Installing, NO Need Any Special Electrician Skills
Replacement for Existing Ball Door Lock , Only for Single Latch.
Documents Download
Datasheet
DS-L500F Fingerprint Door
Lock
File size : 0.64 MB
