DSSP8001 Hydraulic Security Road Blocker

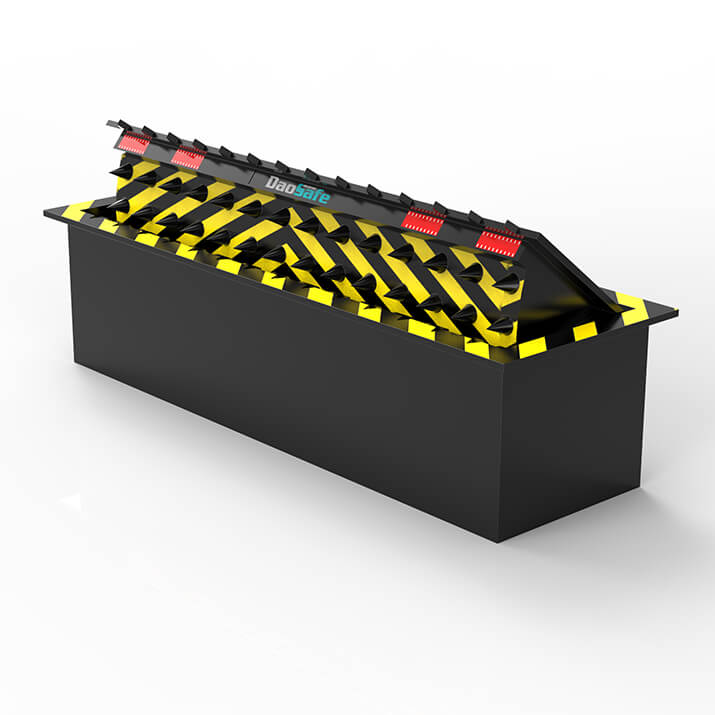

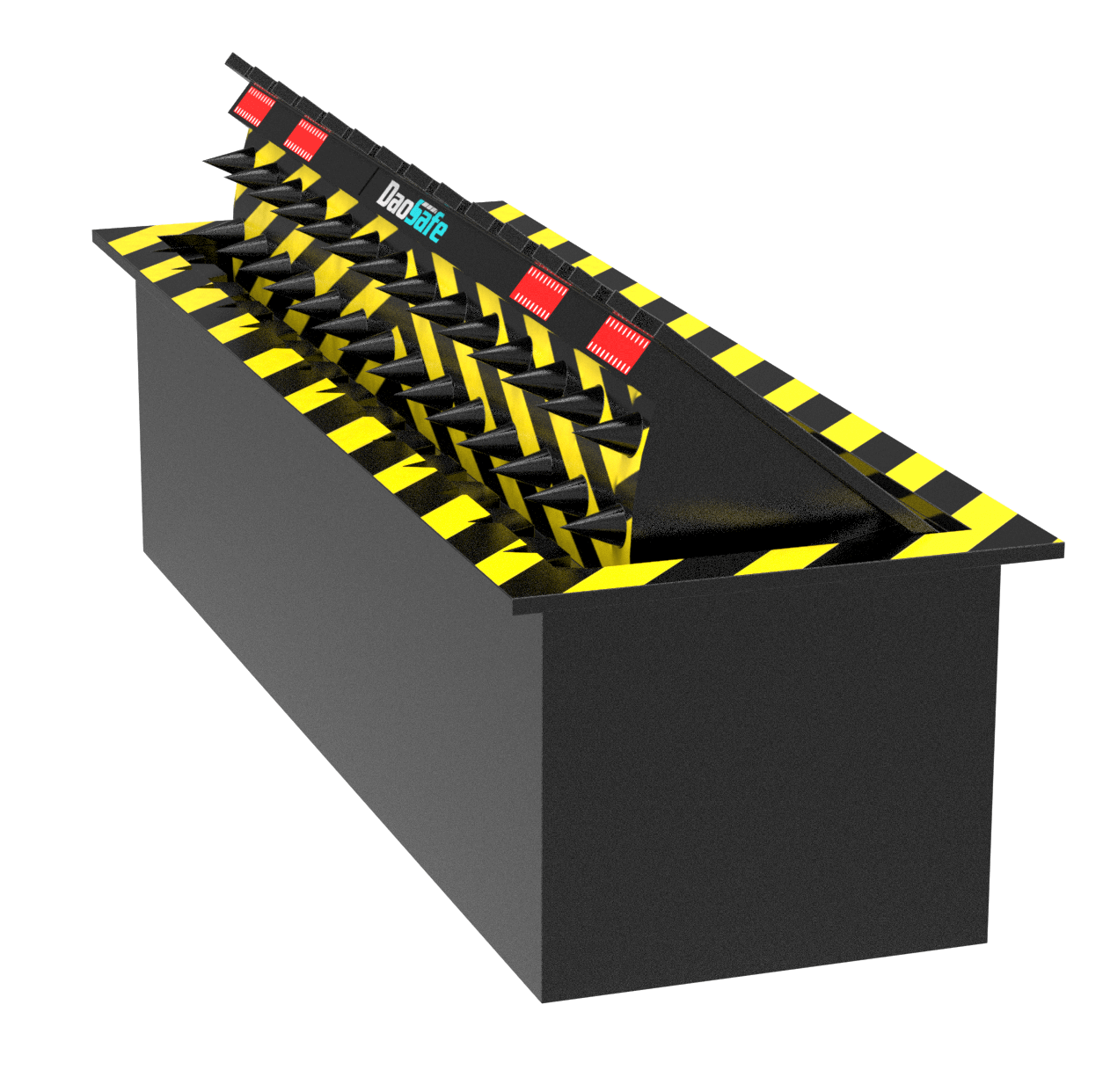

DSSP8001 road blocker consists of 4 parts, fixed framework, overturn device, hydraulic control system and electrical control system.
Extra heavy duty solenoid valves for reliability and safety in operation.
K12 Crash Rating, Daosafe road blocker can stop a vehicle traveling at 120 Km/h (75MPH).
Load bearing capacity up to 100 tons.

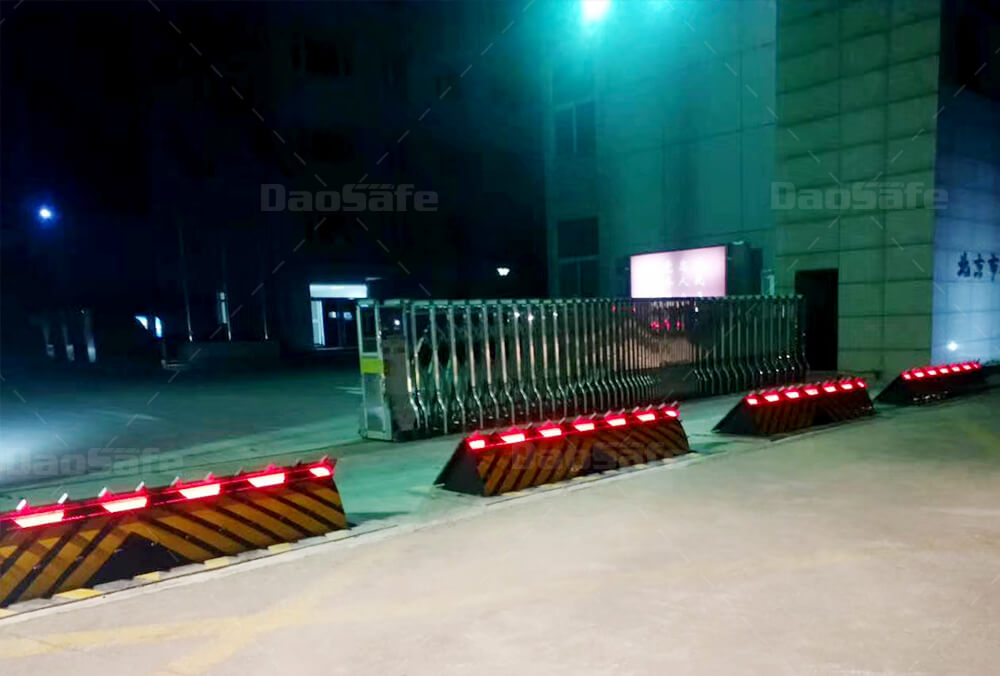

Widely used in military base, government agencies, embassies, prisons, airports, custom ports, banks and other places where has in/out controls. Inquire Now

The unique hydraulic buffer technology at lifting end, smooth operation, low noise, stable performance
IP68 protection grade, can be immersed in water to work.
The solid body can stop the vehicle with high tonnage and high speed easily.
Fast lifting speed, 1-3s for rise, 1-3s for down

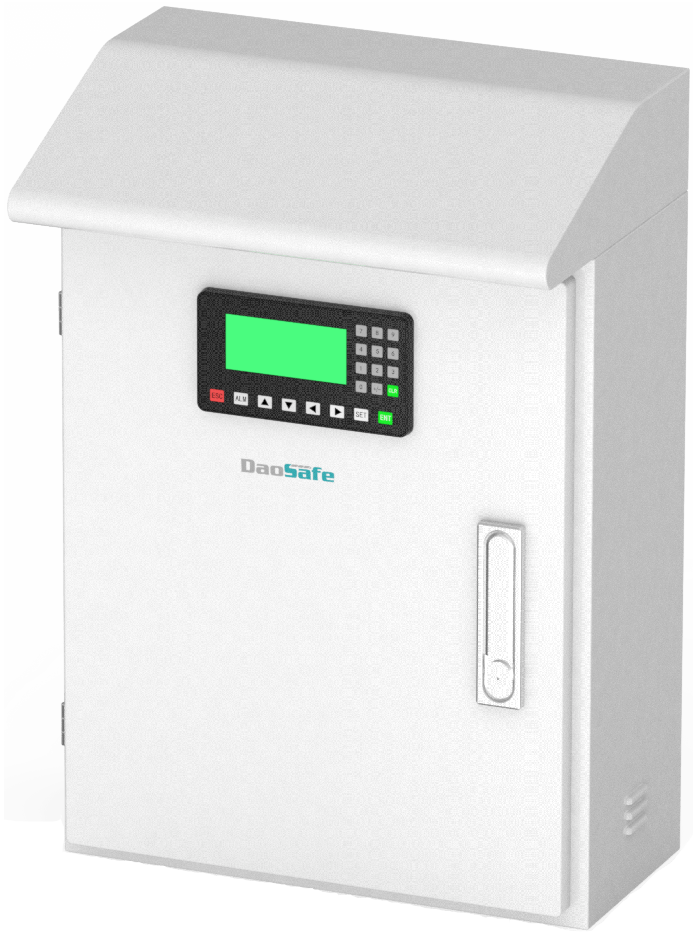

PLC intelligent controller can easily integrate with IR, loop detector, or other access control system.
The body surface is with 2 layers spray paint for anti-rust treatment, rust protection and corrosion resistance.
Multiple color LED with various dynamic mode.
In case of emergency, the barrier will support manually rise/drop.
LED timing auto On/Off function.
3M-DG3 reflective tape, visual range 50m.

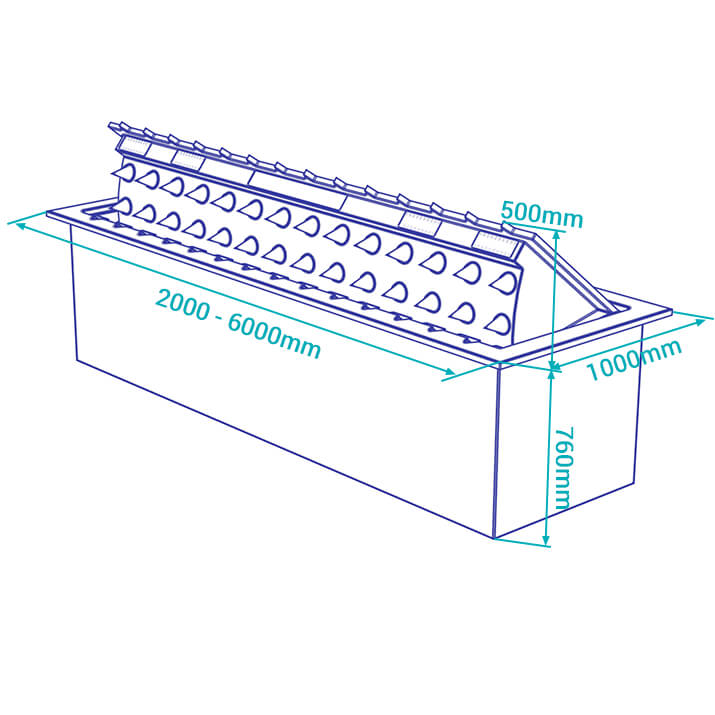

All the details and dimensions can be customized according to your project site

Actuator Type	Electric & manual pump integrated
Bearing Capacity	100t
Protection Rate	IP68
Power Supply	380V AC
Power Consumption	3.75KW/5.5KW
Shock-reducing	Yes
Ambient Temperature	-40℃ ~ 55℃

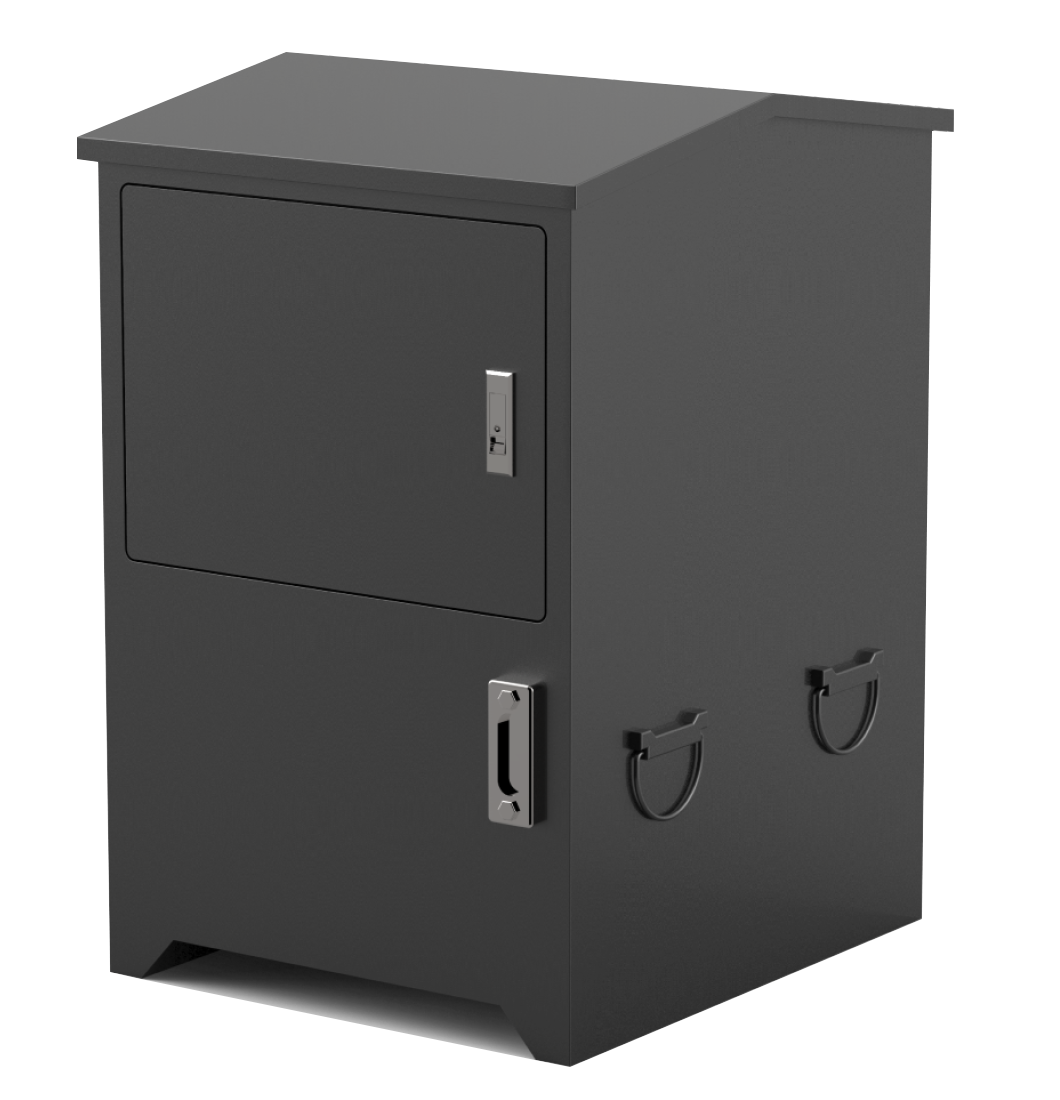

Industrial Hydraulic Tank	30L ~ 60L
