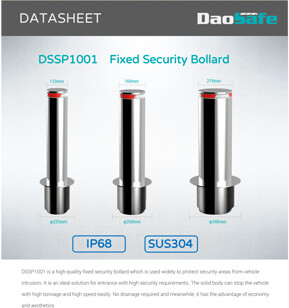

DSSP1001
Fixed Bollards
Type of operator
fixed
Height Aboveground
600mm
Cylinder Thickness
6mm (3/8/10/12mm Optional)
Cylinder Diameter
φ219mm (133/168mm Optional)

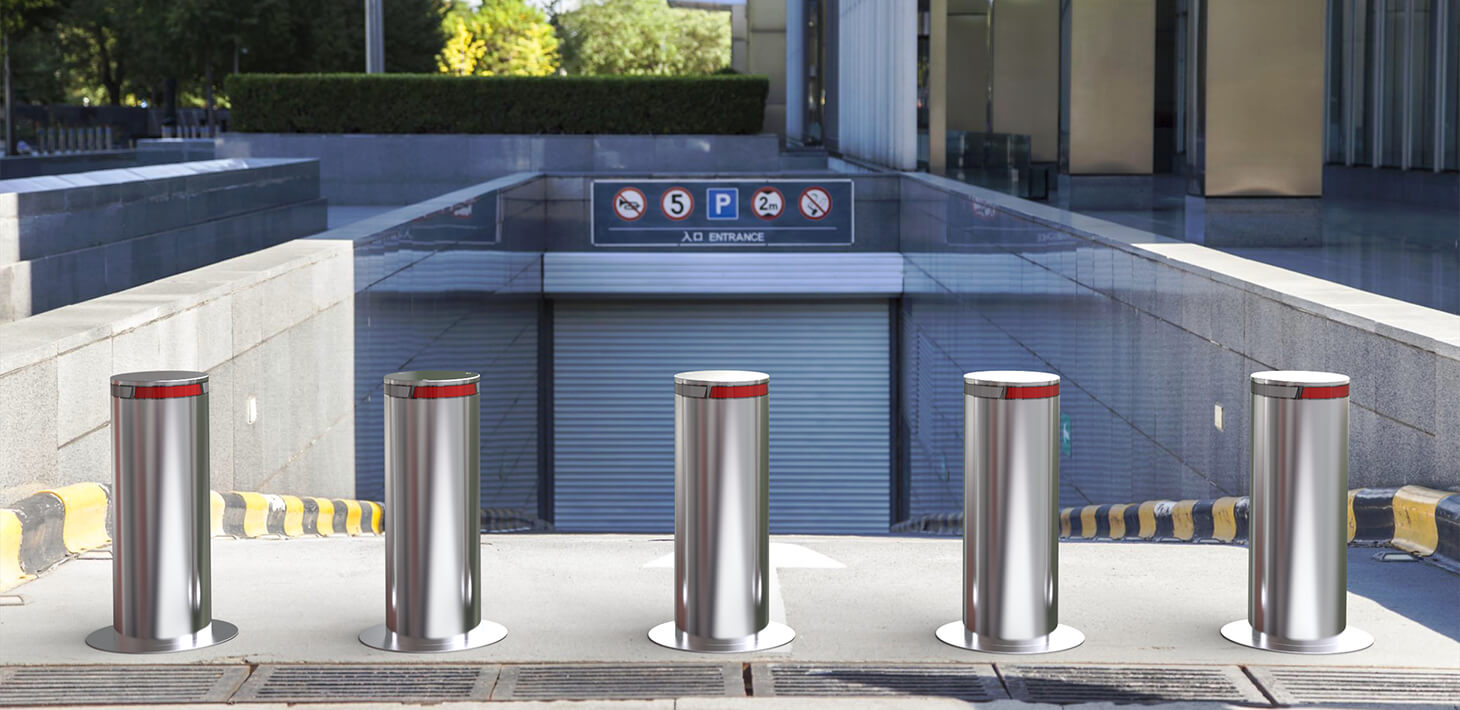

The DSSP1001 fixed traffic bollard is a high-quality and economical bollard which is particularly used widely to protect security areas from vehicle intrusion. The bollards allow you to permanently define pedestrian areas and to complete mixed installations with hydraulic retractable bollards.
Features of Daosafe Security Fixed Bollards
- Fixed bollards come in a variety of sizes to suit a range of security needs.
- These security bollards are available in three different sizes, 133mm, 168mm, and 219mm in diameter.
- Passed the international SGS IP68 protection grade certification, can be immersed in water to work.
- 304 stainless steel for cylinder, flange and top cover.
- Strictly antirust treatment for Q235 steel (A3) pre-embedded section, attractive and durable.
- Flange groove design for aesthetics and skid proof.
- Optional rubber LED warning light with multiple highlight colors, and remote control function.
- 3M-DG3 reflective tape, visual range 600m.

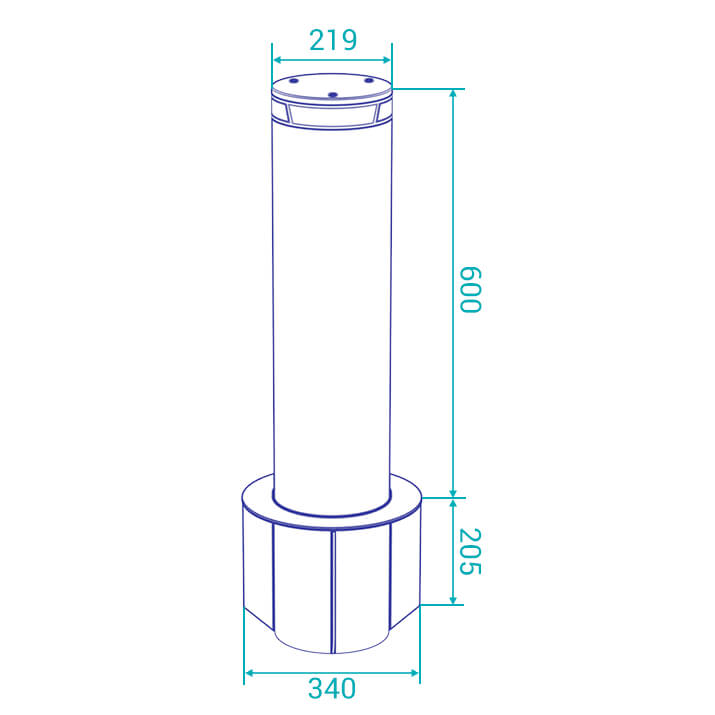

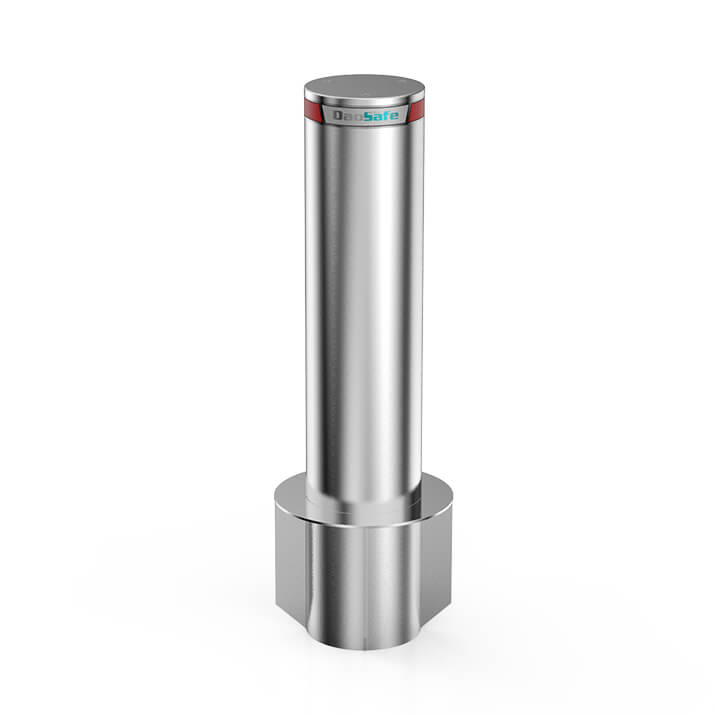

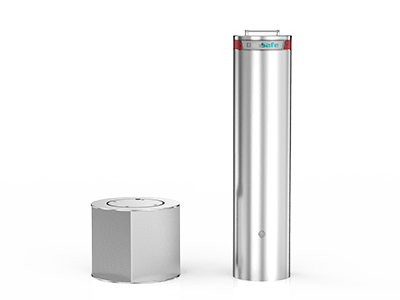

Product Details and Dimensions
The fixed structure of the bollards cannot be destroyed or removed very easy. It’s can be permanently protect the pedestrian safety.

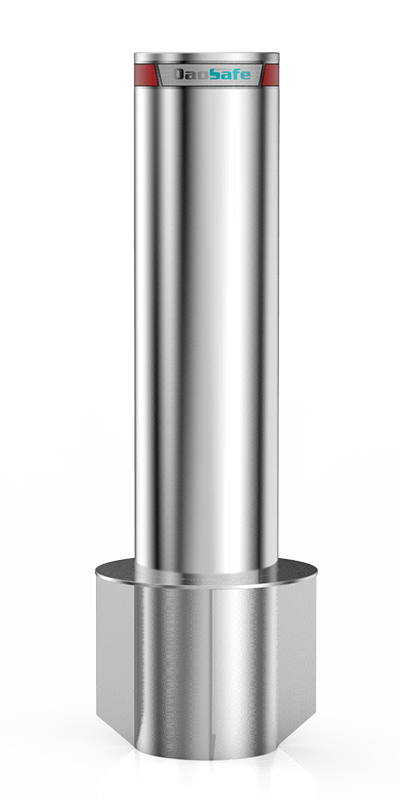

Full 304 stainess steel
Full 304 stainess steel
3M-DG3 reflective tape, LED warning light (optional)
Product Parameters
Bollards
| Model No. | DSSP1001 |
|---|---|
| Brand | Daosafe Security |
| Dimension | φ340 * 805mm |
| Height Aboveground | 600mm |
| Height Underground | 205mm |
| Cylinder Diameter | 219mm (168/133mm optional) |
| Cylinder Thickness | 6mm (3/8/10/12mm optional) |
| Weight | 31kg (15kg, 21kg optional) |
| Material of Cylinder | 304 stainless steel |
| Pre-embedded Section | Q235 steel (A3) |
| Material of Flange | 304 stainless steel-brushed |
| Material of Top Cover | 304 stainless steel-brushed |
| Reflective Tape | 3M-DG3, 50mm |
| LED Warning Light (Optional) | 12VLED strip, RGB, remote control |
Multiple Models for Your Choosing

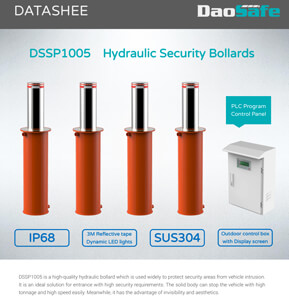

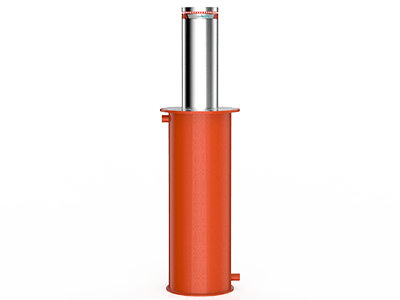

Automatic Hydraulic Bollards
DSSP1005

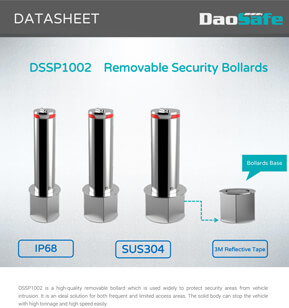

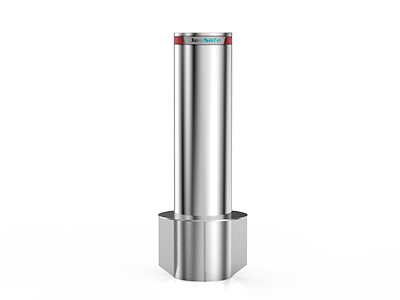

Removable Bollards
DSSP1002
Fixed Bollards
DSSP1001
Professional Guiding, Efficient Installing
Follow professional and safe installation procedures, for easy daily maintenance while achieving a high level of protection.

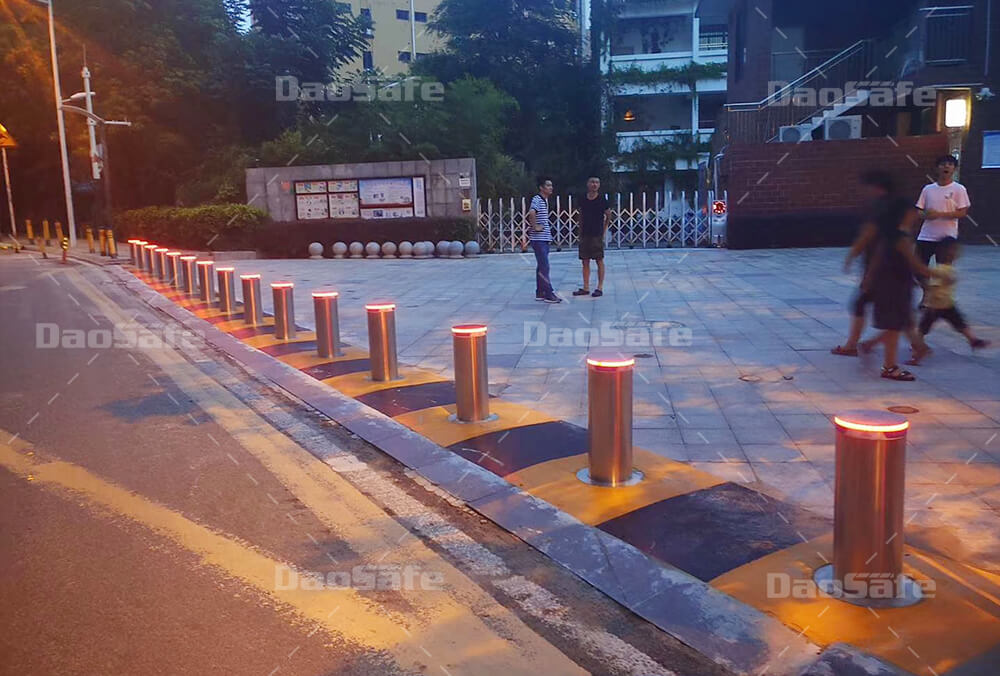

Clients Gallery
Click on images to enlarge

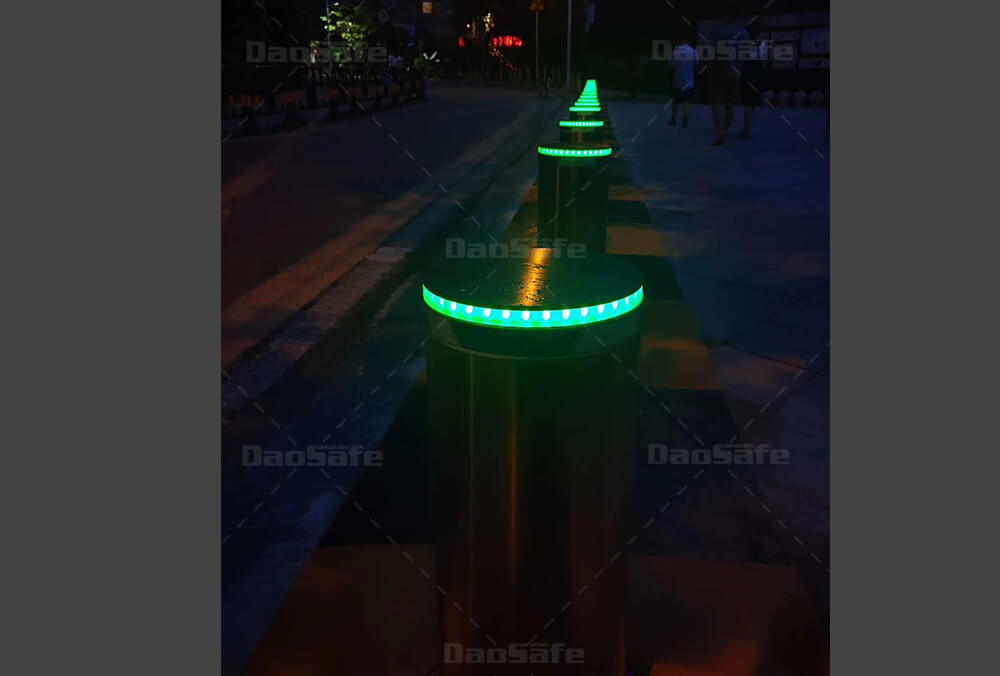

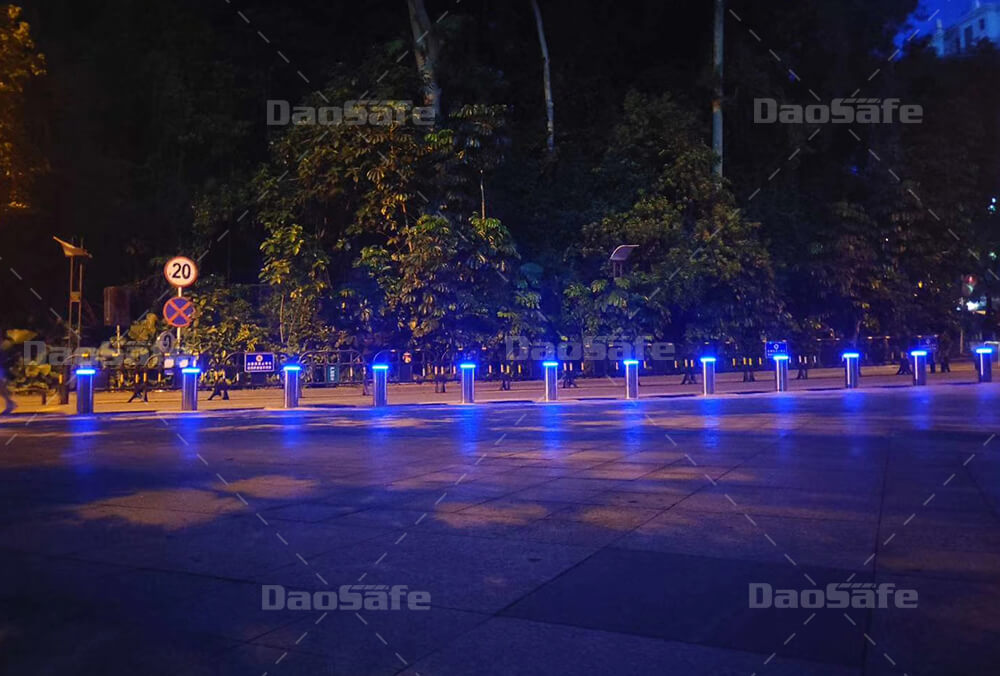

The Park in City 1
The Park in City 2

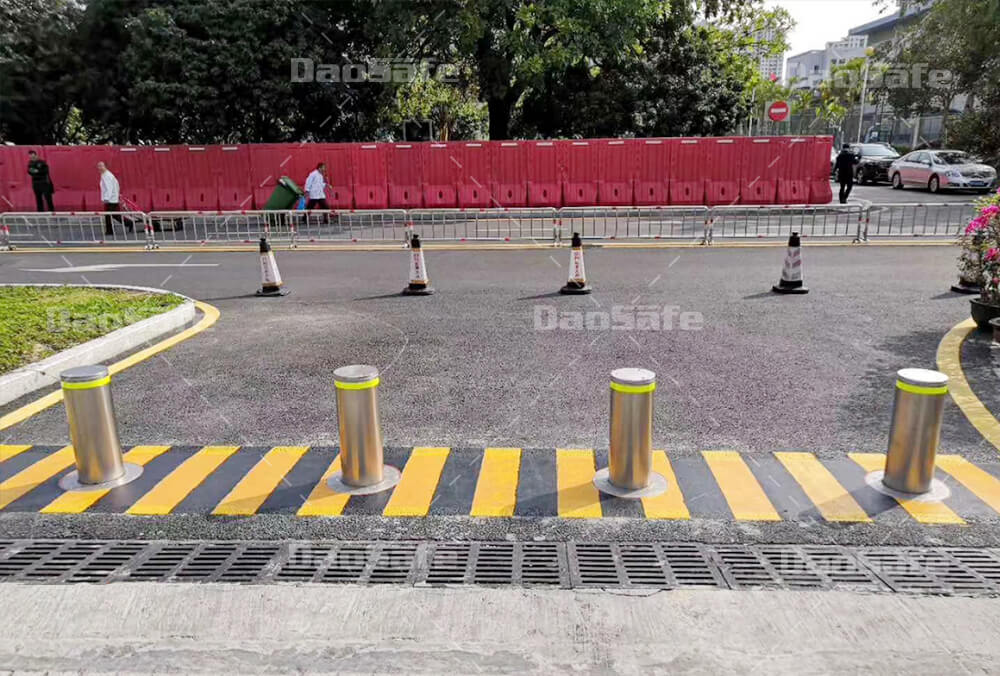

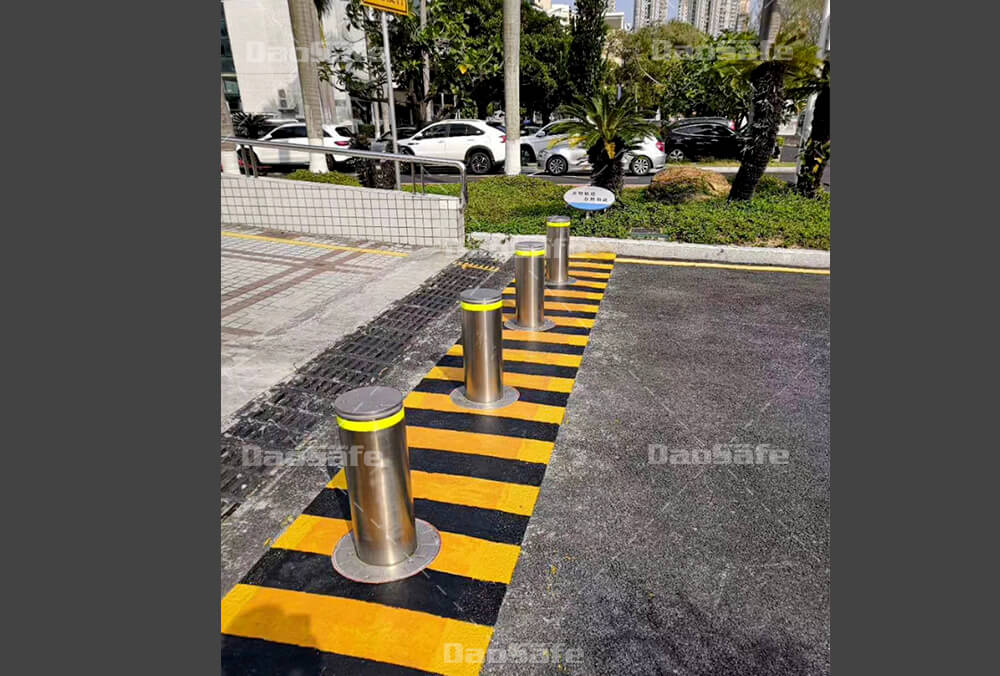

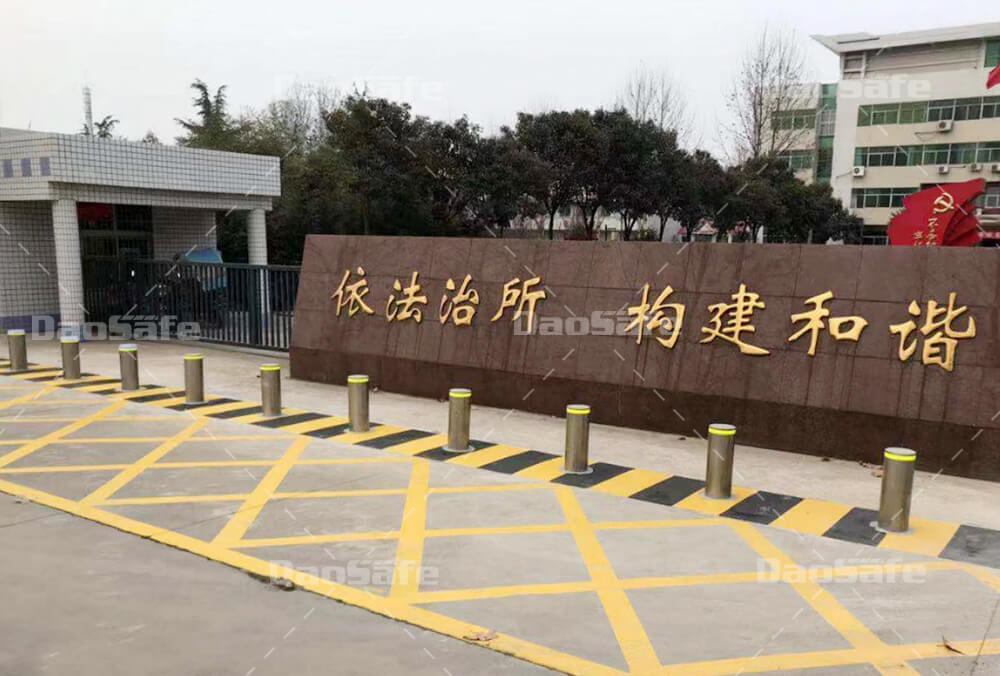

Government Area 1
