DS-F700L Fingerprint Access Controller
- DS-F700L is a fingerprint access controller, supports standalone running and software managed. It uses multi-core ARM processor. Built-in fingerprint identification circuit to support high-speed identification and rejection of false fingerprints.
- Fingerprint identification time < 1S, 2.8 inch TFT color screen, support 5,000 fingerprints, 5,000 cards, 5,000 passwords, 200,000 records, have ID and Mifare format.
- Support TCP/IP and RS485, 1 group of unlock relay, 1 group of door sensor, 1 group of alarm output, can use U disk to backup data, support cloud platform managed.
- Have traditional Chinese and English two languages selected (other languages can be customized).
Features of Daosafe Security Fingerprint Access Controller
- Liveness Fingerprints.
- High Speed Algorithms.
- 2.8 inch TFT color screen.
- Maximum fingerprint capacity can made into 30000.
- Support TCP/IP Communication.

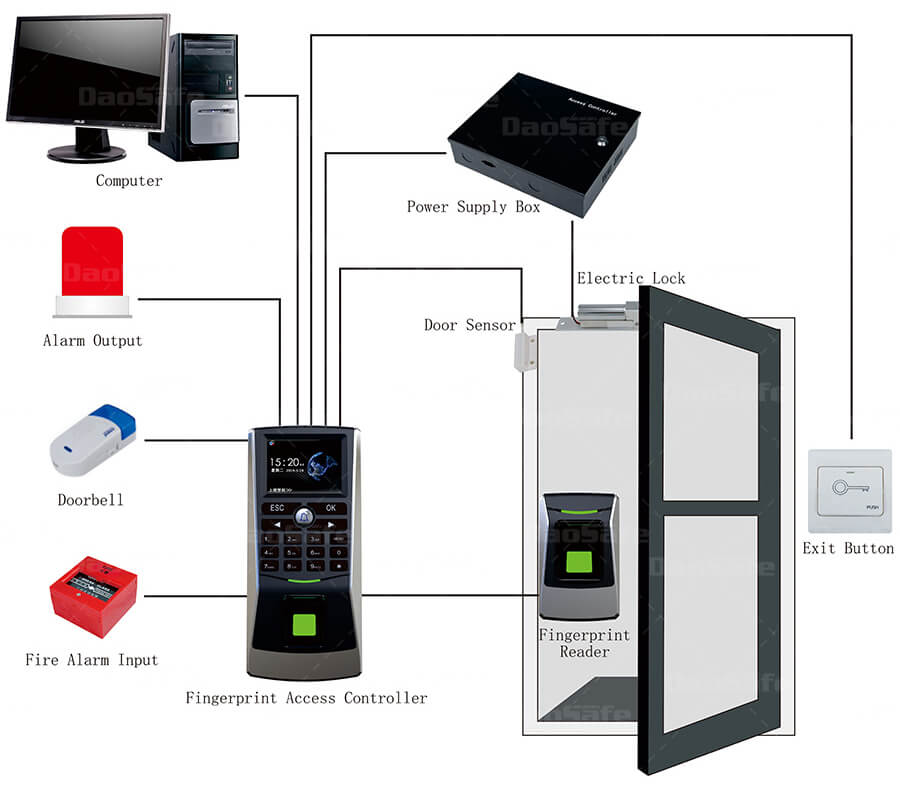

Cloud Plus Access Controller Wiring Diagram
Can integrate a variety of access control equipments
Product Parameters
| Model No. | DS-F700L |
|---|---|
| Brand | Daosafe Security |
| Size | 88.9 X 198.6 X 44.1 mm |
| Display | 2.8 inch TFT color screen |
| Capacity | 5,000 fingerprints, 5,000 cards, 5,000 passwords, 200,000 records(30,000 fingerprint can be customized) |
| Communication | TCP/IP, RS485, USB (WIFI optional) |
| Controller Port | Wiegand26 |
| Fingerprint Acquisition Area | 16 x 14 mm |
| The acquisition Angle Range | ±45° |
| Identification Speed | <1s |
| False Recognition Rate | < 0.0001% |
| < 0.0001% | 1:N, 1:1 |
| Registration Way | Fingerprint, Password, ID card and Mifare card optional |
| Working Voltage | DC12V(9-14V) |
| Operating Temperature | 0-70℃ |
| Operating Humidity | 20-80% |
