Face / Mask / Fingerprint / Card / Passcode Temperature Measurement
 10,000 face +10,000 fingerprints +10,000 cards +10,000 passcode + 200,000 records + 50,000 capture images
Product Details
High Performance and Rapid Recognition Speed
Recognition distance up to 2M with matching speed < 0.3s, wide dynamic strong light suppression with 99.9% authentication accuracy.
HD LCD Display Screen
1.2 GHz dual core CPU, built-in Infrared face recognition camera and 5" TFT capacitive touch screen resolution 720*1280
Mifare Card Reading Function
Built-in card reading module, support Mifare card, CPU card, ID card and so on. 13.56 MHz Mifare card (Standard), 125KHz ID card (optional)
Working Video
- Infrared Array Body Temperature Sensor
- Several Languages Options
- Celsius Display
- Megapixel HD Camera
- High Speed Identification
- Accuracy Rate: 99.9%
- 10,000 Faces Capacity
- 200,000 Records
- Multiple People Simultaneous Recognition
- Voice Prompt
- Online Update
- Access Control Function
- Two Operation Modes: Touchscreen / PC Software
Features of the DS-F871T Terminal
- Temperature detection, the infrared array body temperature sensor, no entry with high temperature.
- Body temperature + face recognition completed in 0.3 seconds.
- Temperature measurement distance: the recognition distance is 0.5-2m.
- Adopts the temperature sensor of Belgian Melexis infrared matrix.
- 1.2 GHz dual core CPU, 5" TFT capacitive touch screen resolution 720*1280
- Multiple people simultaneous recognition, 1 : N / 1 :1 can identify four people at the same time.
- Built-in card reading module, support Mifare card.
- USB communication port, can insert USB disk to import data, can use USB disk to upgrade and backup data.
- ABS material body, waterproof & smog-proof, stable and durable.
- ≤0.5 second high speed identification, 99.9% accuracy rate, wide dynamic 2 Mega pixel HD camera, 360-Degree biometrics liveness recognition.
Applications
Different type of application scenarios, differentiated installations
1. Integrated with turnstiles

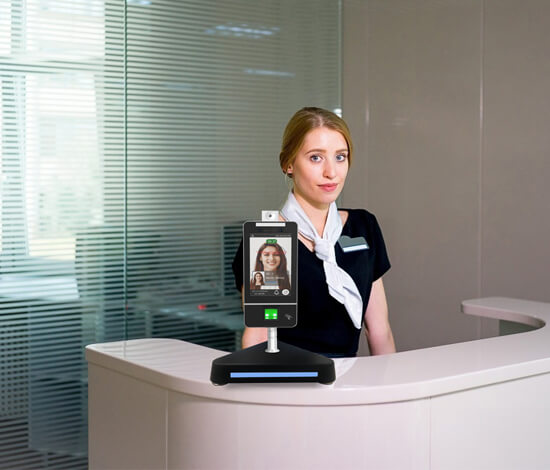

2. Put on the desk
4. Installed on the standing pillar

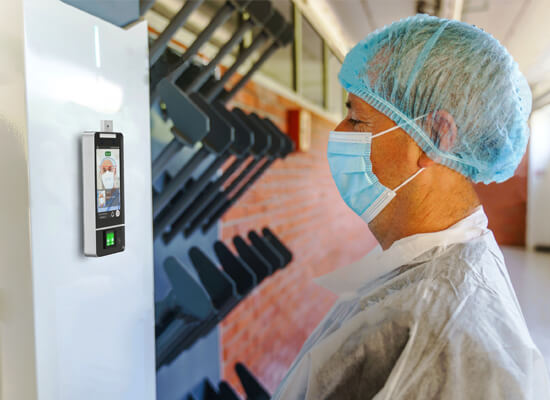

3. Installed on the wall
DS-F871T

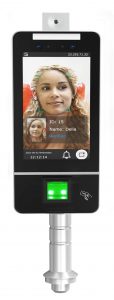

With Bracket

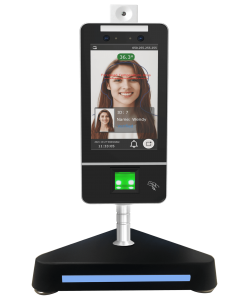

With Table Stand

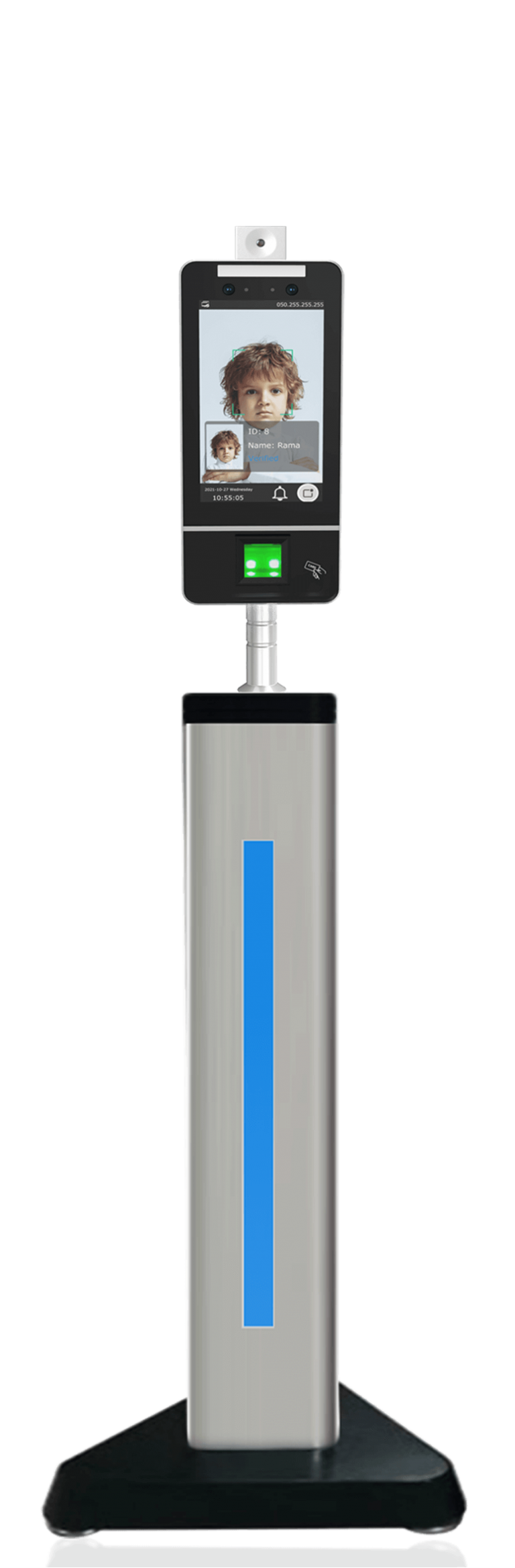

With Led Pillar (Child)

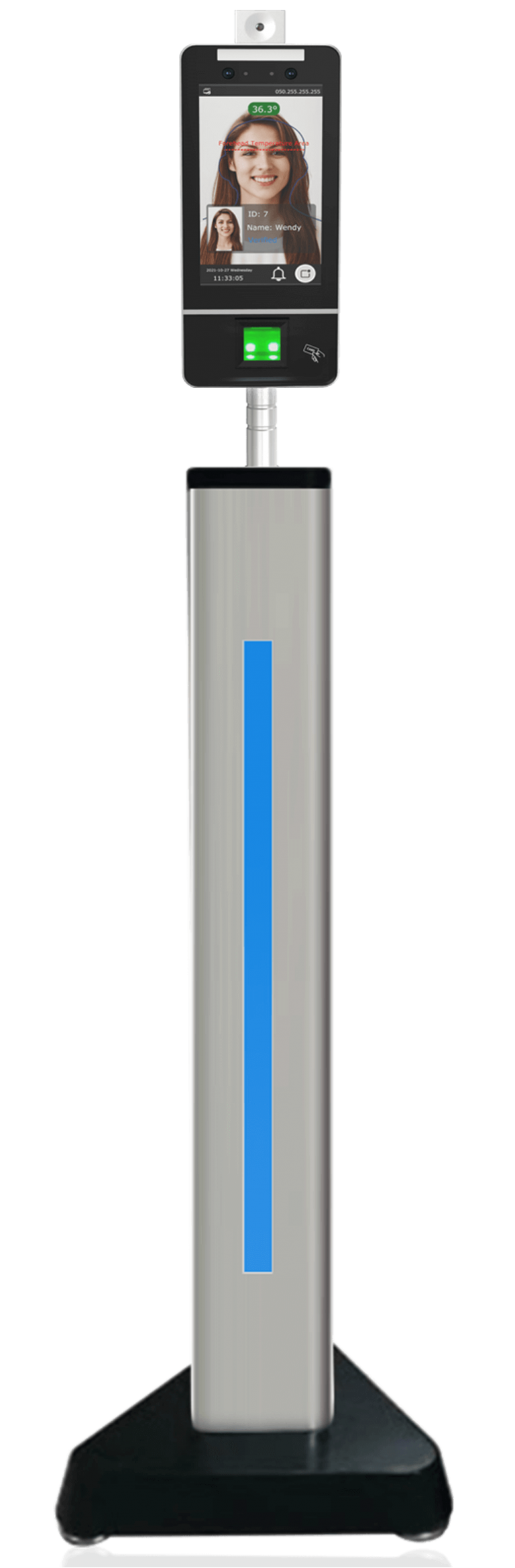

With Led Pillar (Adult)
Product Parameters
| Model No. | DS-F871T |
|---|---|
| Brand | Daosafe Security |
| Body Material | Zinc alloy body |

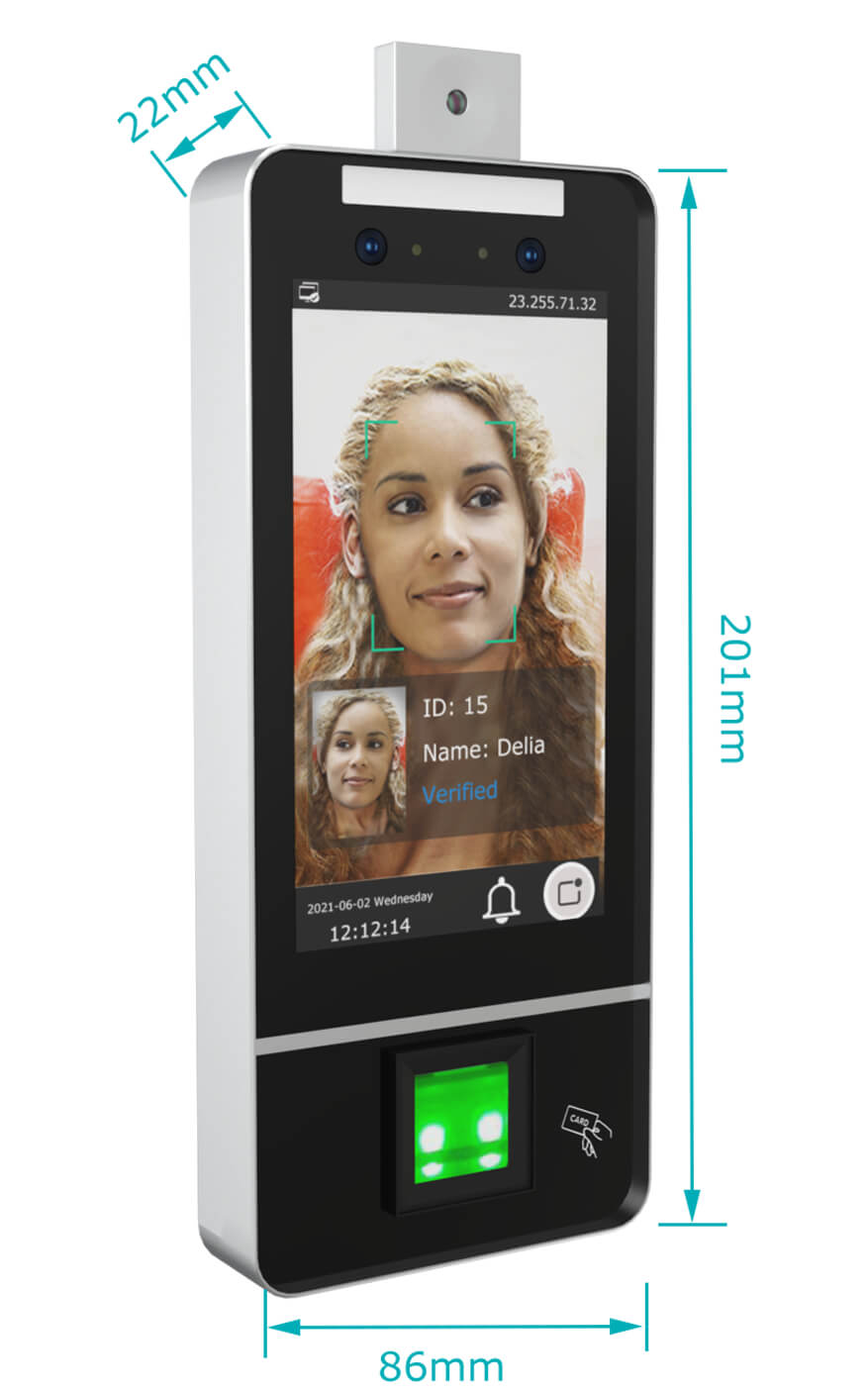

| Size | 86x201x22mm |
| Weight | 0.45KG |
| Display Screen | 5" TFT capacitive touch screen |
| CPU | Dual core 1.2GHz |
| Storage Capacity | 16G |
| Communication Way | WIFI communication can be optional |
| Operation Mode | Touchscreen/PC software |
| Operation System | LINUX |
| Camera | Dual camera( VIS & NIR ) |
| Liveness Detection | Support |
| User Capacity | 10,000 faces + 10,000 cards |
| Records | 200,000 records |
| Recognition Way | 1:N / 1:1 |
| Identification Speed | ≤0.3S |
| Wiegand Function | One group of wiegand input/Wiegand output (26/34) |
| Working Voltage | DC12V/2A (DC9V-14V) |
| Working Temperature | -20°C~60°C |
| Working Humidity | 0% to 90% |
| Support Language | English, Chinese |
Related Videos
Usage Scenarios Demo
Operation Modes
Language and Celsius/Fahrenheit Switch
Installation Procedure
Use Case in American School
Documents Download
Datasheet
DS-F871T Face Temperature Measurement Access Control Terminal Datasheet
File size : 1.17 MB
