Walk-through Metal Detector DSSP513
- DSSP513 metal detector adopts international advanced electromagnetic compatibility design and shock resistant design, has a high sensitivity, strong anti-interference ability and aseismatic ability.
- Able to distinguish ferromagnetic and non-ferromagnetic metal objects.
- Can detect the size of half a paper clip of metal, no leakage and string.
- Suitable for controlled knives and guns and other dangerous goods safety inspection, widely used in prisons, courts, schools, hospitals, electronics companies, port, the passenger, exhibition halls, convention centre, major celebrations, concerts and other important places.

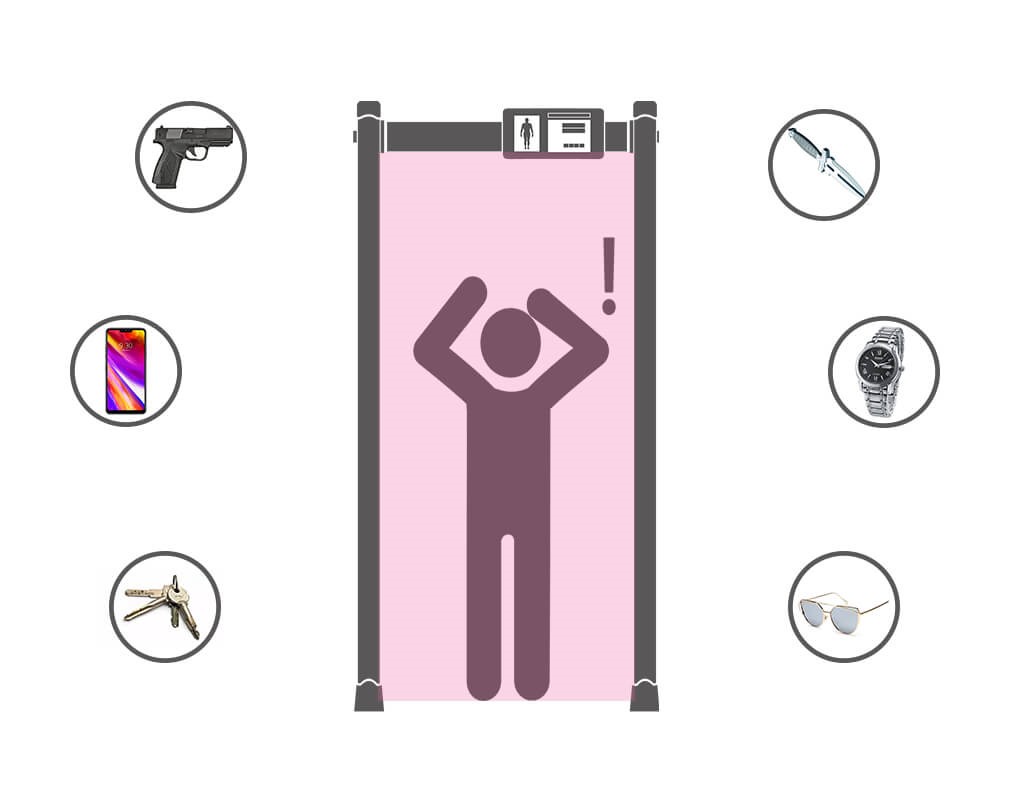

Detection Performance Display
This equipment can detect precious metals such as copper, aluminum and zinc above 150 grams, or controlled knives and guns, excluding the influence of belt buckles, leather shoes and bras.
Metal Detection
Workshop Show
Features of Walk-through Metal Detector
- Preset the weight, volume, size, location, key, jewelry, belt buckle and other false alarms of metal items.
- Sensitivity can be adjusted as needed, a total of 1000 sensitivity.
- Products passed the European CE certification
- Bilateral contraption infrared can accurately detect the number of people passing through and alarm number.
- Comply with international safety standards, it is harmless to heart pacemaker wearers, pregnant women, magnetic media, etc.
- Two sides of the door body are equipped with LED lights, which can visually display the area where prohibited items are located by positioning lights.
- Use the remote control to set the parameters. The parameters can be password protected, which can’t be operated by unauthorized personnel.
- Reserved communication interface, can be connected with computer, camera, three rollers, monitoring, statistical detection, adjust the security gate parameters.

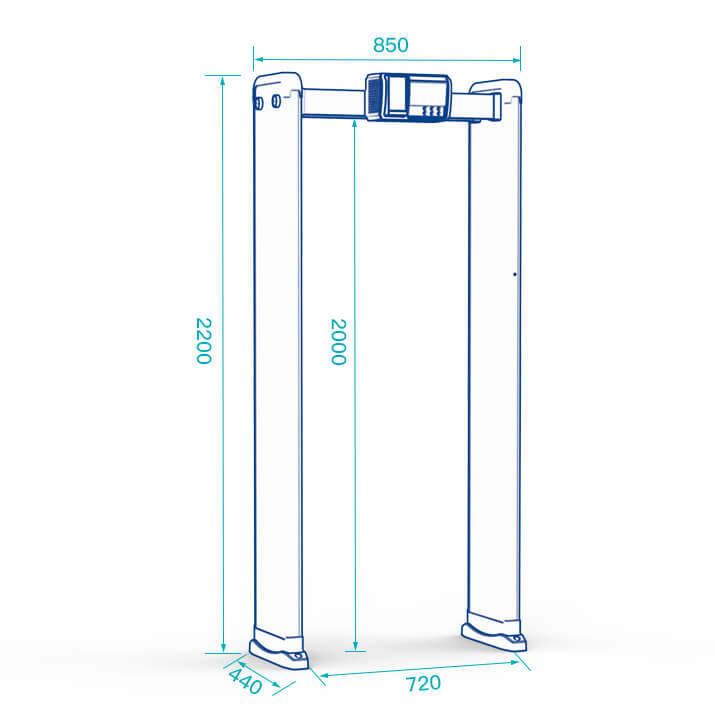

Product Dimension
All the details and dimensions can be customized according to your project site
Passenger number and alarming number
Alarm bars
Infrared sensors
Power supply socket
Product Parameters
| Model No. | DSSP513 |
|---|---|
| Name | Metal detector |
| Brand | Daosafe Security |
| Vertical Evening Size | 2230(H)×920(W)×440(D) mm |
| Vertical Channel Size | 2000*715 mm |
| Net Weight | 34kg |
| Working Voltage | AC90V-240V 50/60Hz |
| Power | 12W |
| Operation Frequency | Adjust according to the installation environment |
| Working Temperature | -20°C~65°C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Detection Range | Metal objects |
| Detection Defense Zone | 6 sector (standard) 12/18/33 (optional) |
| Output Connection | PC connection (Optional) |
| Output Connection | Turnstile gate connection (Optional) |
Videos
Installation Tutorial Guide

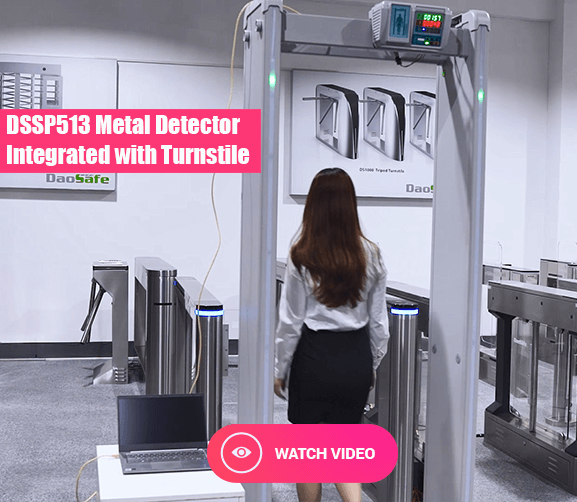

Integrated with Turnstile Gate
