Barrier Gate
Smart Chip
Remote Control
Fast Lifting
No Noise
Instant Identifier
FUNCTIONAL CHARACTERISTICS

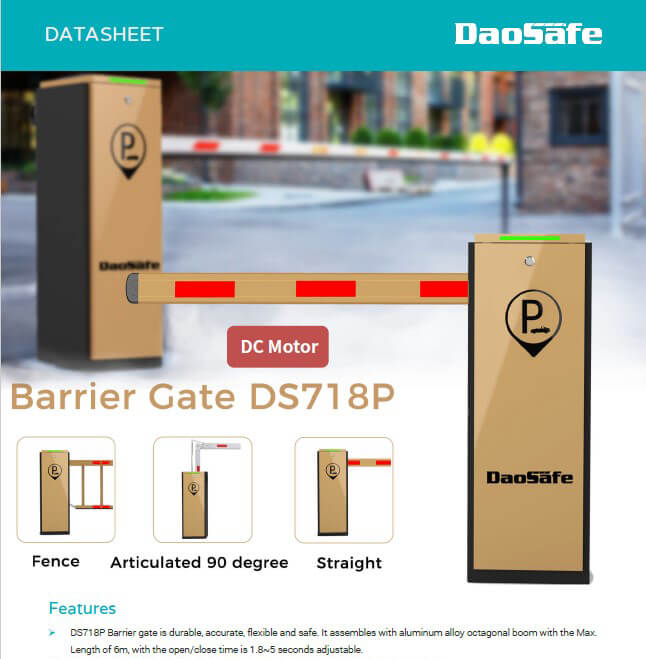

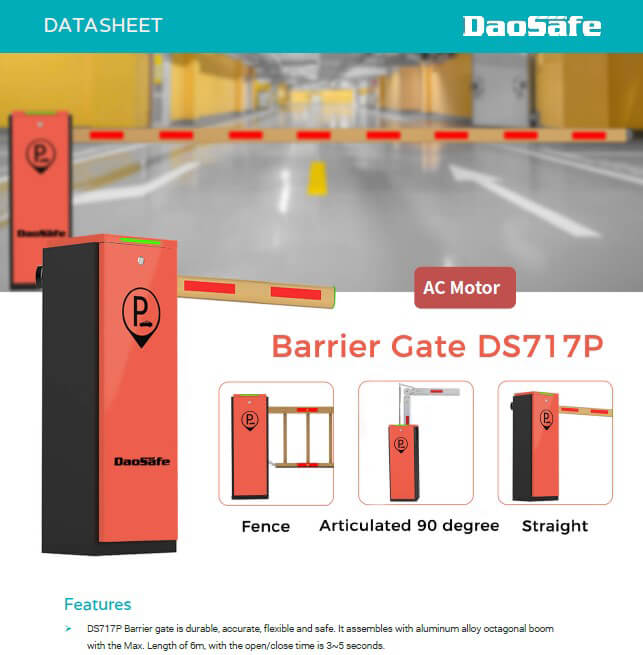

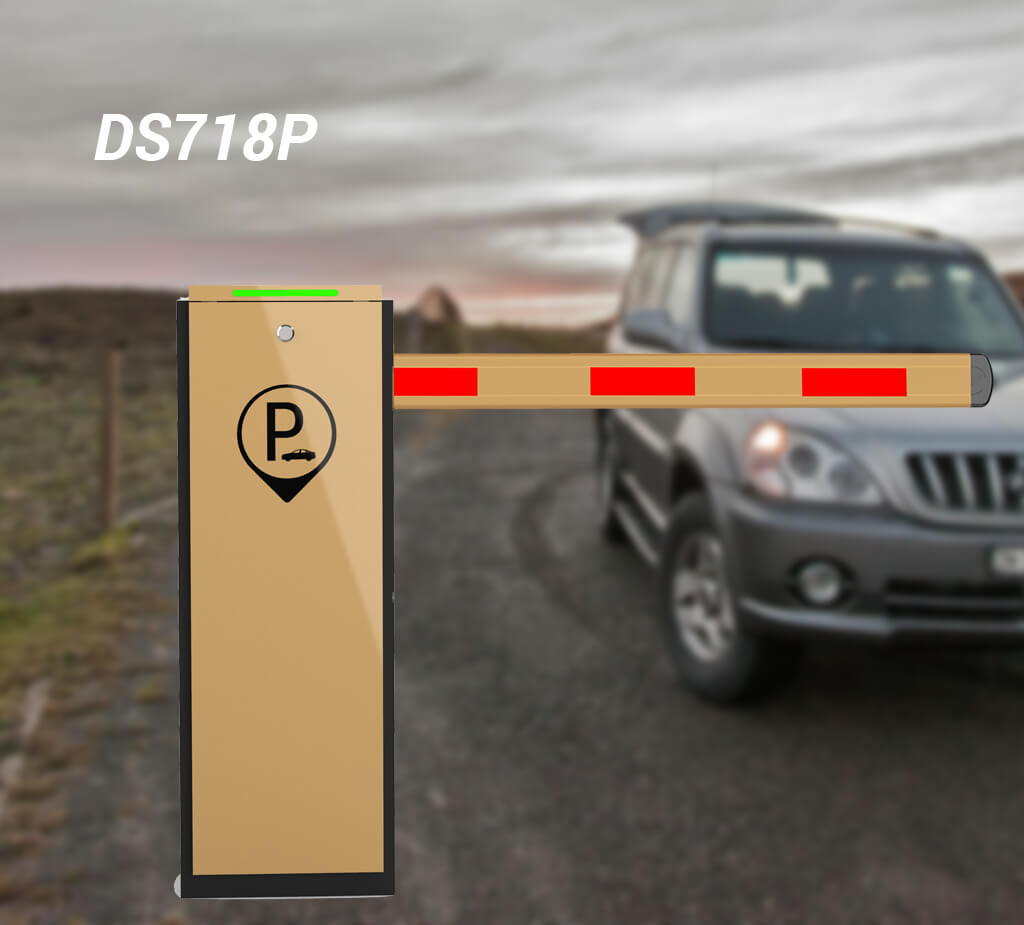

- DS717P&DS718P barrier gates are durable, accurate, flexible and safe. It assembles with aluminum alloy octagonal boom with the Max. Length of 6m, with the open/close time is 2~6 seconds adjustable, and 0.8~2 seconds adjustable (optional).
- The direction of the boom barrier movement can be adjusted to left or right at any time.
- The movement of the barrier adopts a crank and rocker transmission mechanism, which is compact in structure, enhanced rigidity, and convenient for maintenance and operation.
- When the brake lever is in the horizontal or vertical state, the movement structure is completely self-locking, which can effectively protect the reducer from external impact.
- Compared with ordinary barrier gate movement, the parts are reduced by about 20%, and there are fewer failures. Manual control in case of no power.
- Anti-smashing function, rebound when encountering obstacles.
- Control Board in a Plastic box makes control board waterproof and dustproof.
- All part is made by mold make the barrier gate accurate and stable.
- Safety- Loop detector: after vehicle passed the barrier will automatically close once the loop input was triggered.
Barrier gate
beam type
Fence
Articulated 90 degree
Straight
Dimensions

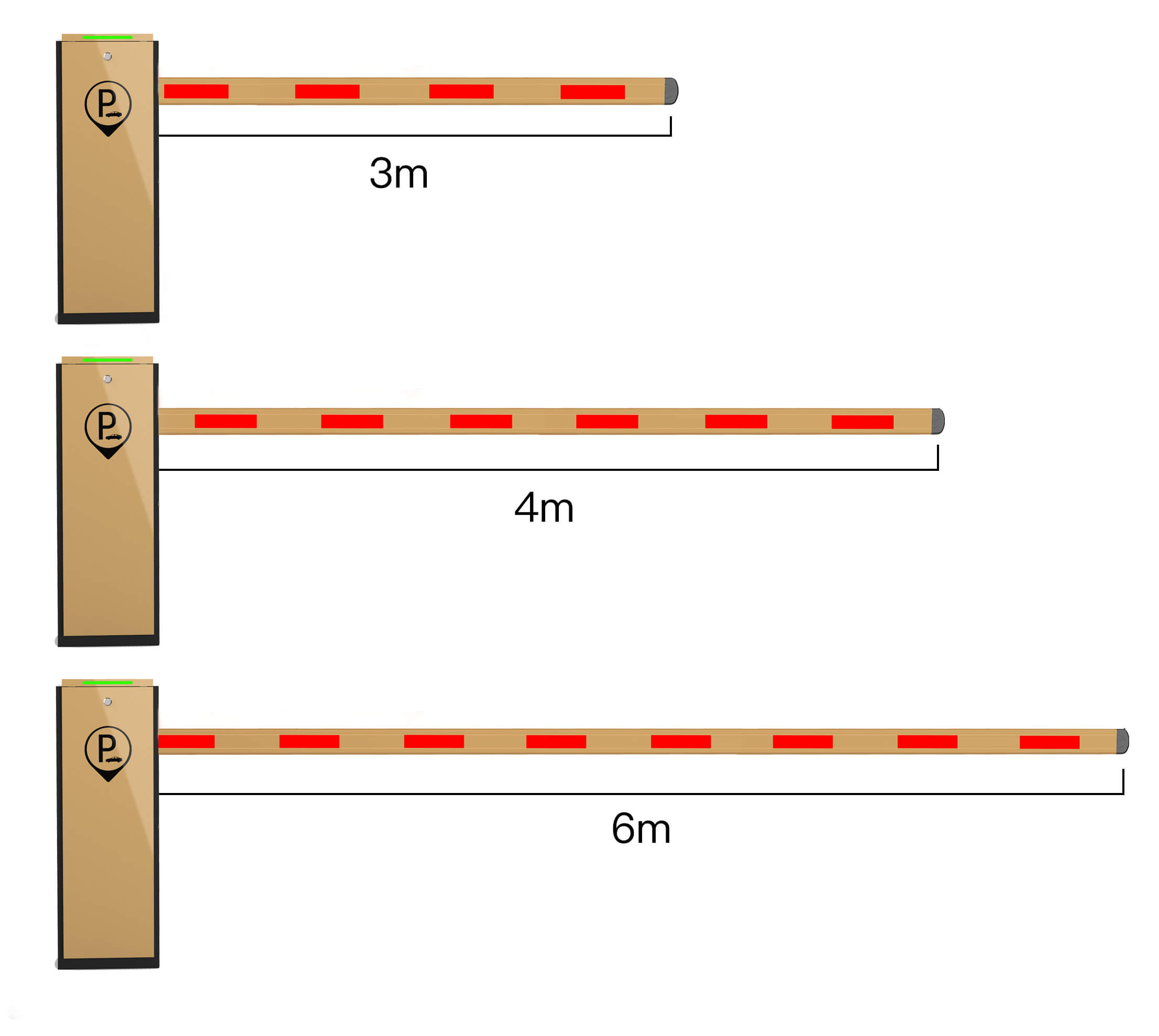

Arm Length
Barrier gate arm length can be up to 6 meters

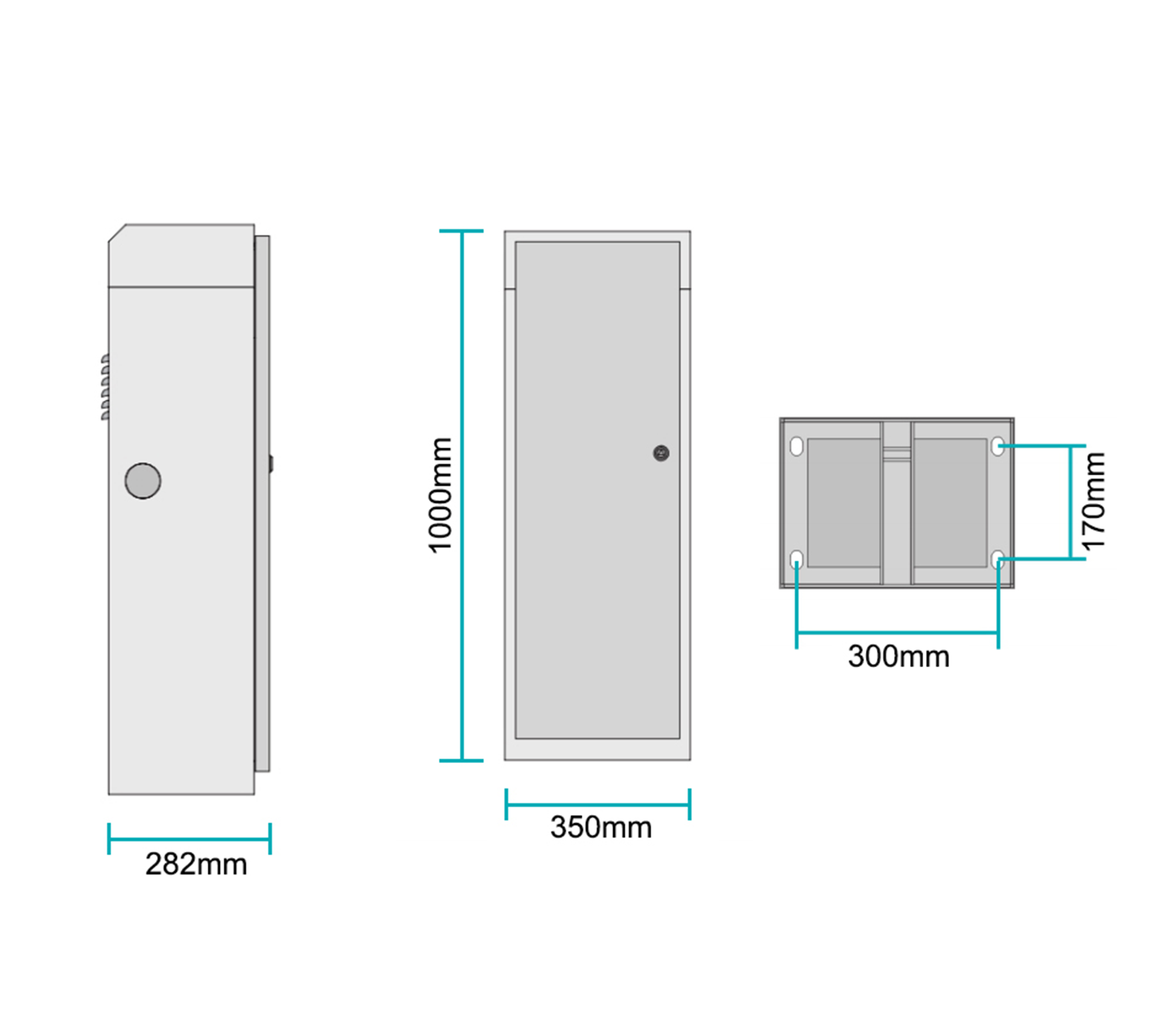

Dimension
350mm(L) x 282mm(W) x 1000mm(H)
DURABLE, FLEXIBLE, SAFE
See The Good Operation Condition In The Video
Barrier Gate
SALIENT FEATURES
150W High Power Motor
Fast Power Foot For Motor Rod, Unshaking
Arm Direction Change
Arm Direction Can Be Exchanged Between Leftward And Rightward Within 3 Minutes
New Structure Design
1~6m Gate Bar,
No Need To Replace The Spring
Operating Speed
0.8S~2S Adjustable
PRODUCT PARAMETERS
| Model No. | DS717P | DS718P |
|---|---|---|
| Brand | Daosafe Security | Daosafe Security |
| Motor | 125W AC motor | 24V 150W DC Motor |
| Framework Material | Carbon Steel, IP54 level | Carbon Steel, IP54 level |
| Beam | Aluminum alloy | Aluminum alloy |
| Mechanical Structure | Adjustable (Left or right) | Adjustable (Left or right) |
| Dimension | 350 * 282 * 1000mm | 350 * 282 * 1000mm |
| Operating Speed | 3~6S when starting up the arm | 1.8S~5S adjustable |
| Weight | 55KG | 55KG |
| Case Thickness | 1.5mm | 1.5mm |
| Input Interface | Photo cell, loop detector, parking system | Photo cell, loop detector, parking system |
| Input | 12V relay signal or pulse wide>100MS | 12V relay signal or pulse wide>100MS |
| Power Supply | AC220V/110V, 50/60Hz | AC220V/110V, 50/60Hz |
| Working Temperature | -40°C to +85°C | -40°C to +85°C |
| Relative Humidity | ≥90% | ≥90% |
| MCBF | 5 million time | 7 million time |
| Push Button | Support | Support |
| Remote Control | Two button remote transmitter, distance≤50m | Two button remote transmitter, distance≤50m |
| Optional Accessories | Loop detector; IR photo cell | Loop detector; IR photo cell |
| Beam Type | Straight, articulated 90 degree, fence | Straight, articulated 90 degree, fence |
| Max Beam Length | 3M/4M/6M | 3M/4M/6M |
| Opening/Close Time | 3S/6S | 1.8S/5S |
ACCESSORIES
Motor
Remote Control
Control Board
Push Button
Arm
Boom Bracket
IR Photo Cell (optional)
Loop Detector (optional)
