DSSP1007
Hydraulic Security Bollards
Type of operator
Automatic Hydraulic
Height Aboveground
600mm (800mm Optional)
Cylinder Thickness
6mm (8/10/12mm Optional)
Cylinder Diameter
φ219mm (273/324mm Optional)
DSSP1007 hydraulic bollard is the most cost-efficient in all types of full-automatic bollards, which is a popular anti-crash model and which is used widely to protect security areas from vehicle intrusion. It is an ideal solution for entrance with high security requirements. The solid body can stop the vehicle with high tonnage and high speed easily. Meanwhile, it has the advantage of invisibility and aesthetics.
Features of Daosafe Security Automatic Hydraulic Bollards
- Electric-hydraulic integrated actuator, low/high temperature resistant, stable performance.
- Passed the international IP68 protection grade certification can be immersed in water to work.
- Fast lifting speed, ≤4s for up, 2.5s for down.
- 304 stainless steel for cylinder & inside parts.
- Piston rod is treated with chrome-plated steel 45, more hardness and wear-resisting.
- Motor idling protection function.
- Emergency drop while the power outage.
- <0.2mm tolerances come from high power laser cut
- Anti-skid design on base-plate.

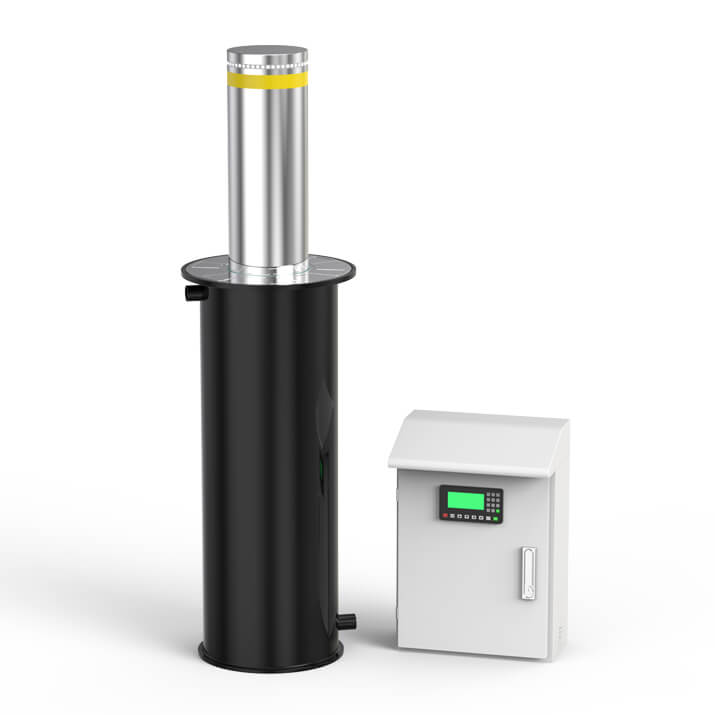

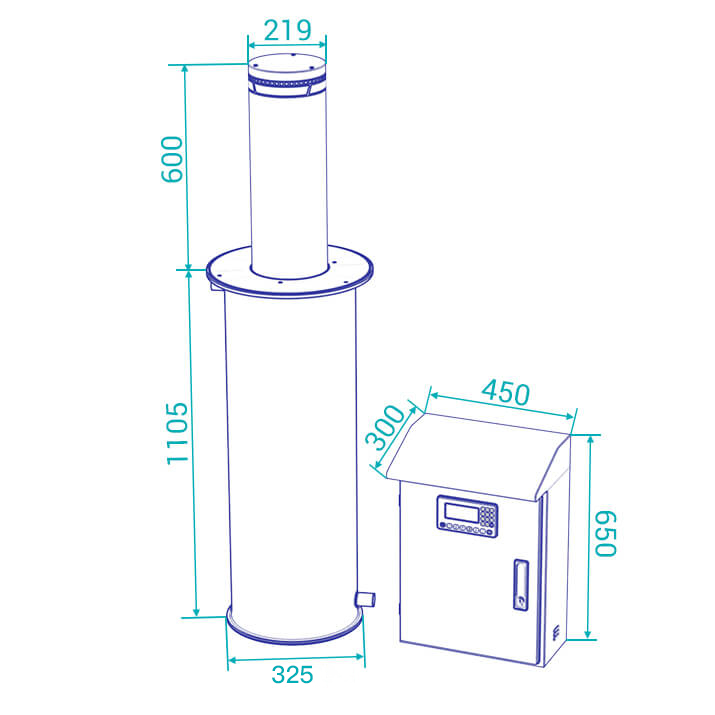

Product Details and Dimensions
The one control box support simultaneously controlled the many sets of the hydraulic bollards.
Full 304 stainess steel
1 of 5LED indicator

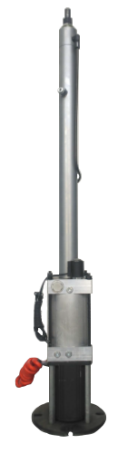

2 of 5Oil-immersed hydraulic actuator
3 of 5LCD screen

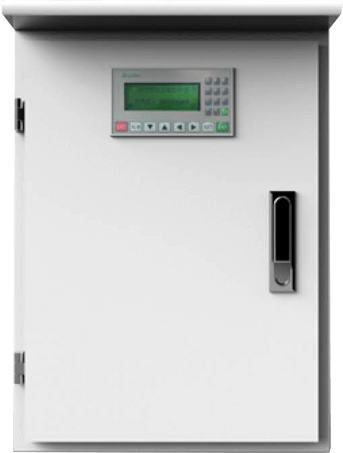

4 of 5PLC program control box
5 of 5
Product Parameters
Bollards
| Model No. | DSSP1007 |
|---|---|
| Brand | Daosafe Security |
| Rising Time | 2.5s |
| Dropping Time | 2s |
| Dimension | Φ350 * 1115mm |
| Height Aboveground | 600mm (800mm Optional) |
| Height Underground | 1115mm |
| Cylinder Diameter | 219mm (273/324mm Optional) |
| Cylinder Thickness | 6mm (8/10/12mm Optional) |
| Weight | 130kg |
| Material of Cylinder | 304 Stainless steel |
| Flange Thickness | 10mm |
| Pre-embedded Section | Q235 Steel (A3) |
| Material of Actuator | 304 Stainless steel with spraying plastics |
| Diameter of Piston Rod | 16mm |
| Reflective Tape | Highlight reflective tape, 50mm wide |
| LED Warning Light | Standard |
Hydraulic Actuator
| Actuator Type | Electro-hydraulic |
|---|---|
| Lifting Force | 200kg |
| Protection Rate | IP68 |
| Power Supply | 220V/110V AC |
| Power Consumption | 350W |
| Overheating Protection | 100℃ |
| Ambient Temperature | -20℃ ~ 55℃ |
| Oil Tank Capacity | .............................................4L............................................. |
| Heating Unit | Optional |
Control Box
| Control System | Motherboard controller |
|---|---|
| Controller Box | Cold-rolled steel (Rain-proof design) |
| Self-testing Program | Yes |
| LED Light Auto On/Off | ...............................................Yes............................................... |
| Emergency Rise/Drop | Yes |
| Air Leakage Switch | Yes (CHNT Brand) |
| Power Supply | 220V/110V AC |
| Remote Control Distance | 50m (Bollard) |
Multiple Models for Your Choosing
Hydraulic Security Bollards
DSSP1007
Removable Bollards
DSSP1002
Fixed Bollards
DSSP1001
Professional Guiding, Efficient Installing
Follow professional and safe installation procedures, for easy daily maintenance while achieving a high level of protection.

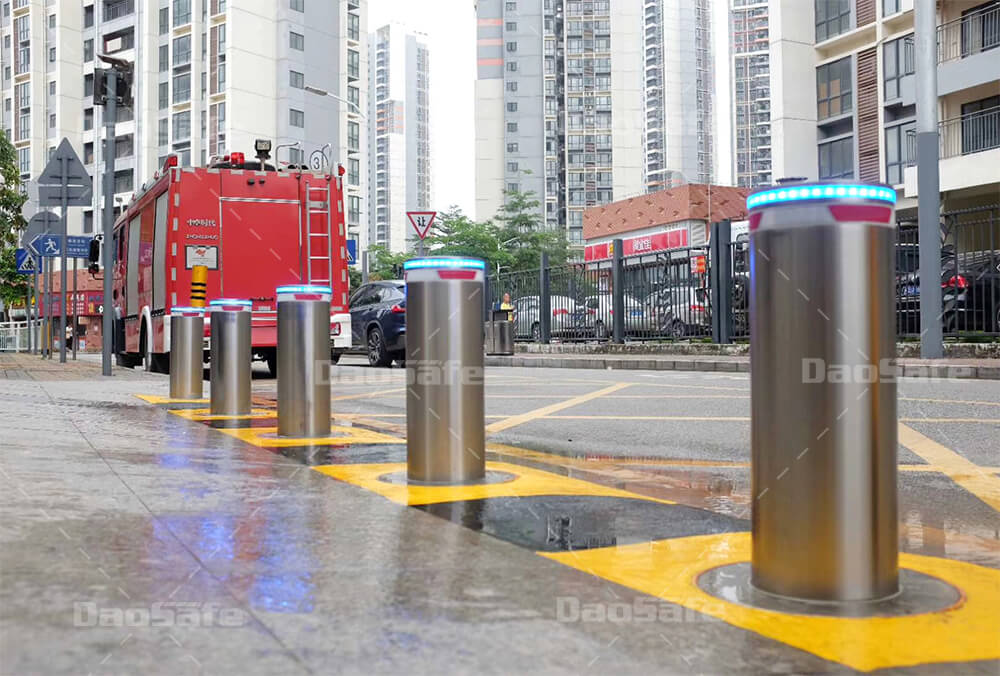

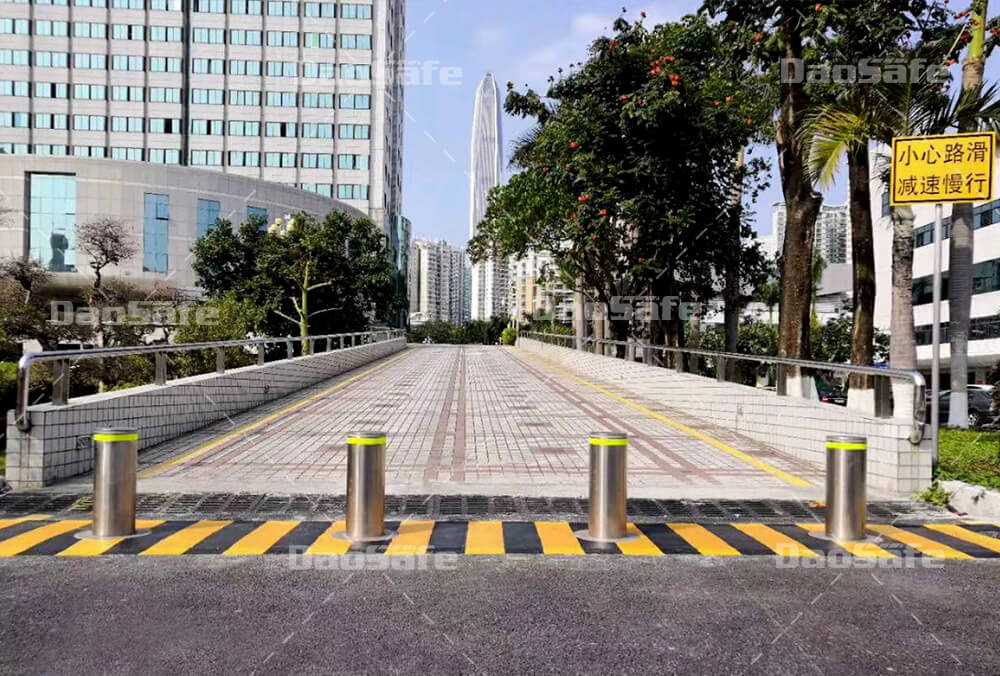

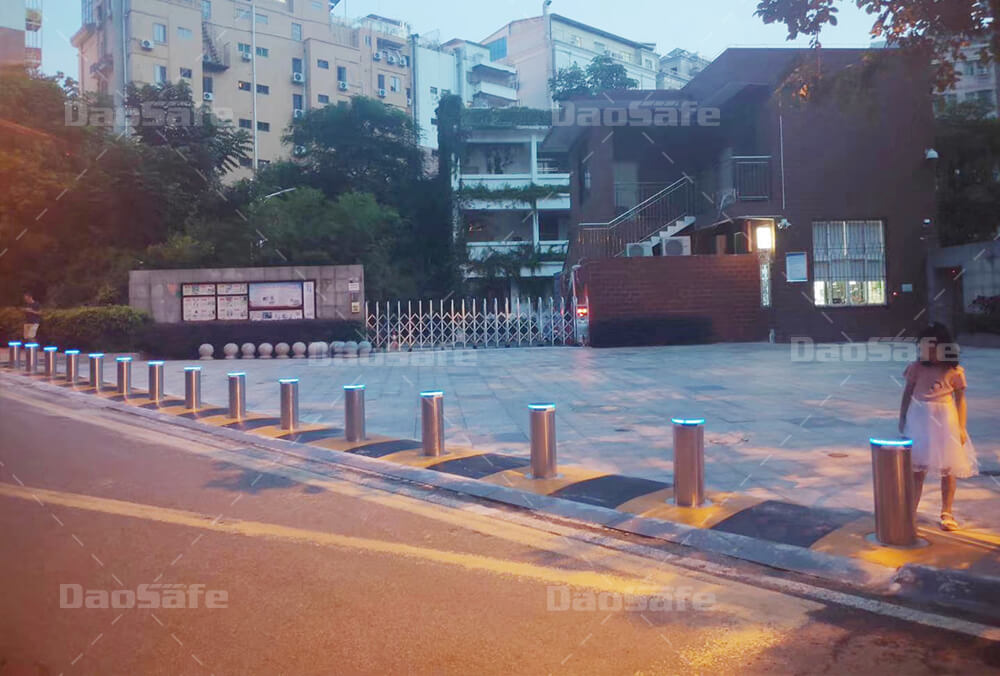

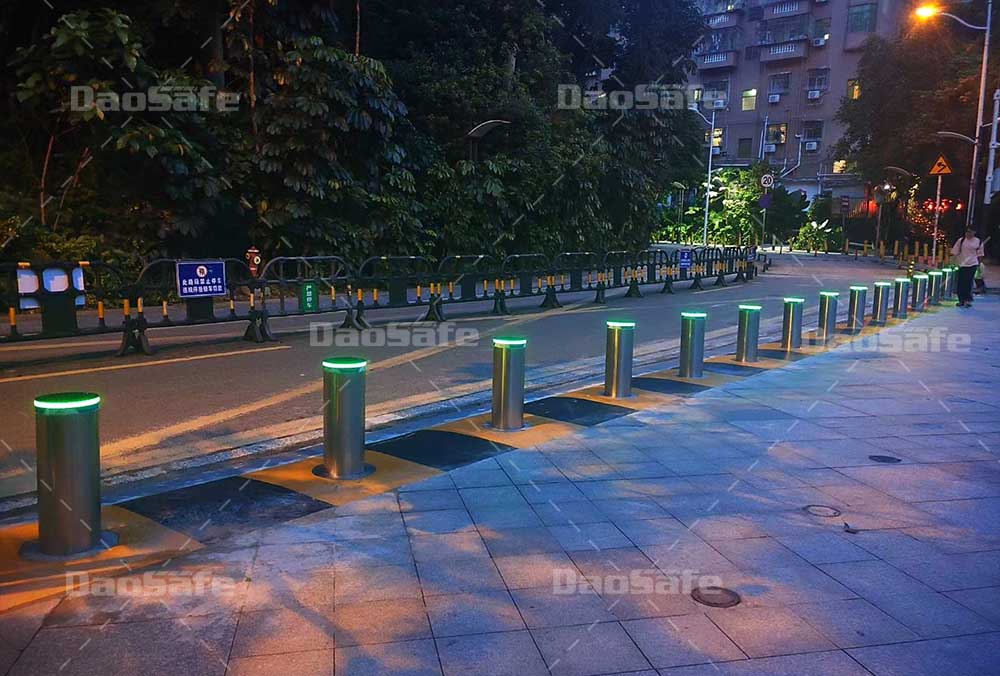

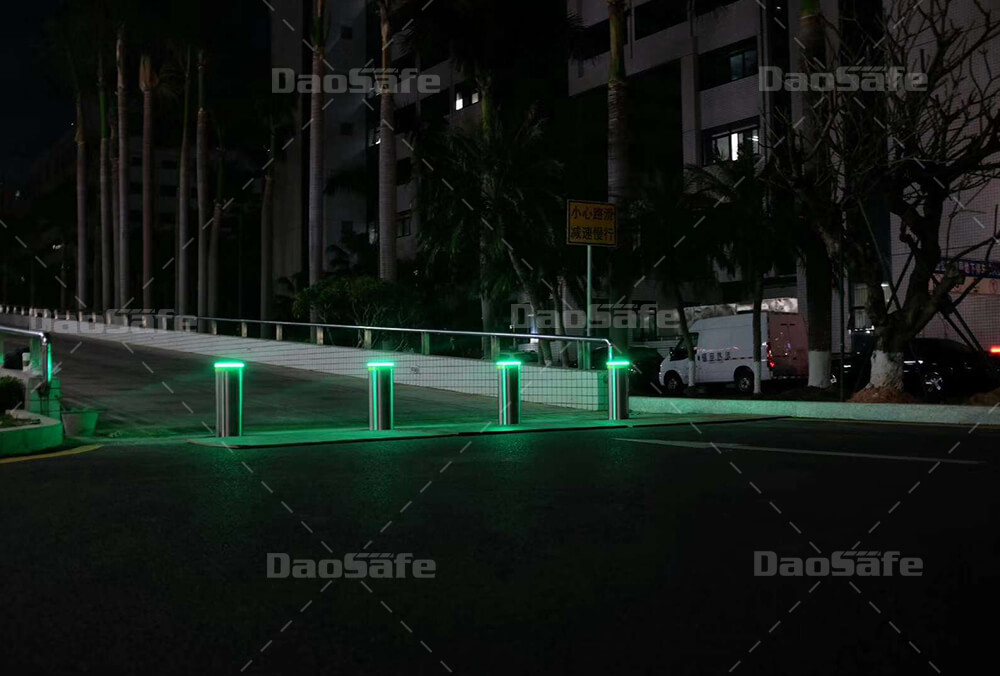

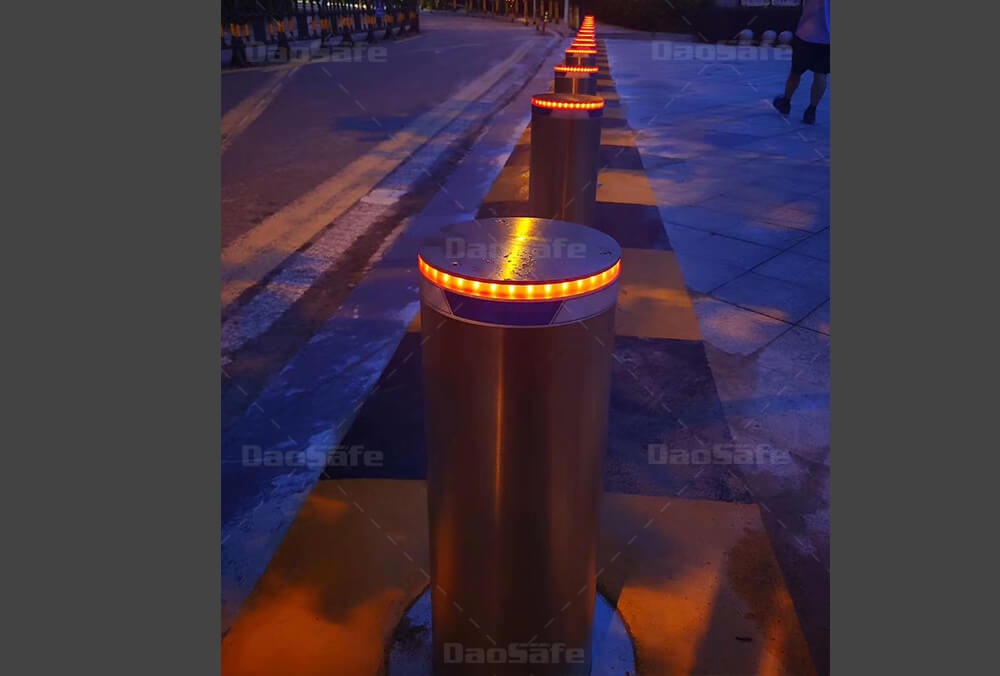

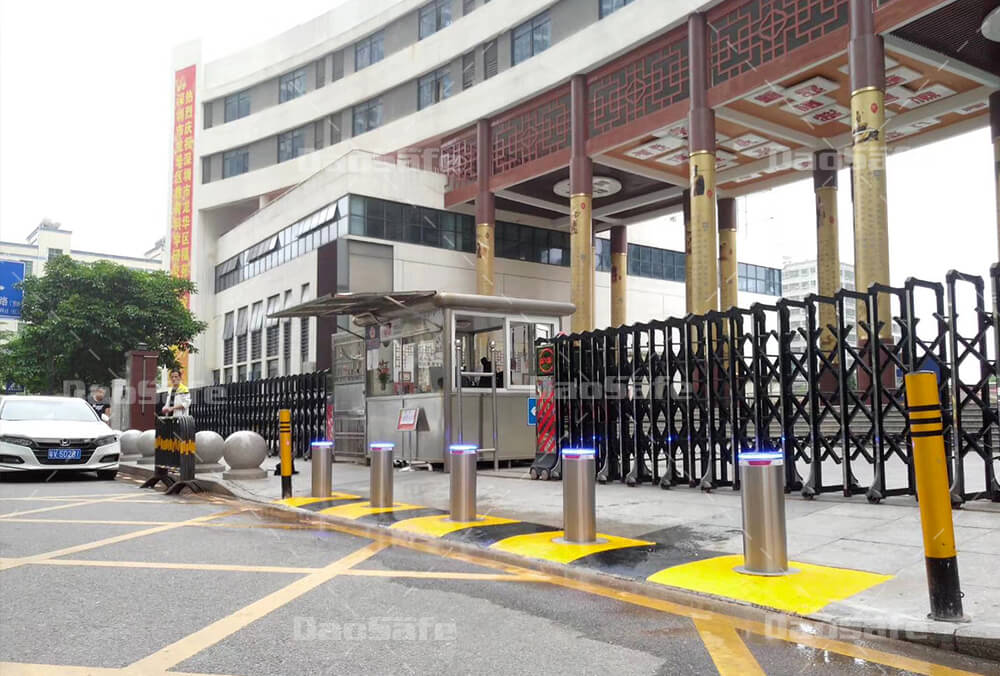

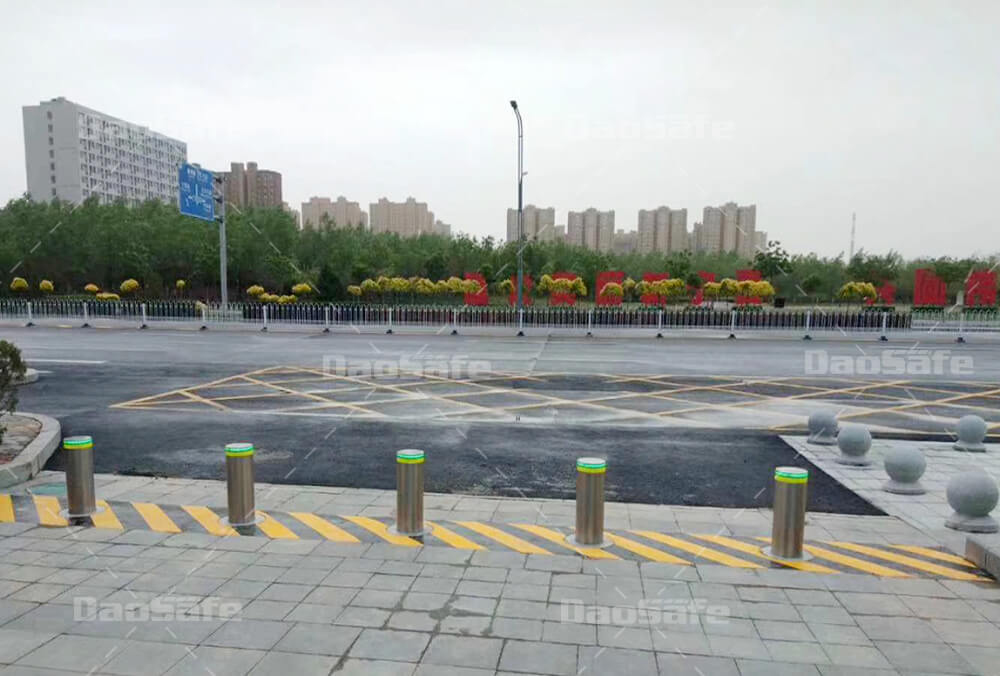

Clients Gallery
