DSSP1005
Automatic Hydraulic Bollards
Type of operator
Automatic Hydraulic
Height Aboveground
600mm
Cylinder Thickness
6mm (8/10/12mm Optional)
Cylinder Diameter
φ219mm (273/324mm Optional)

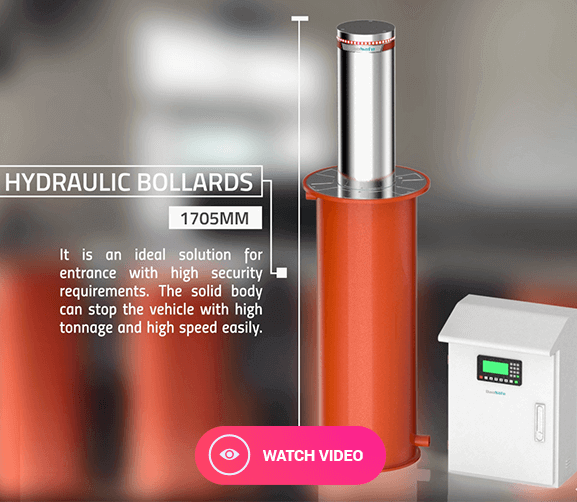

The DSSP1005 automatic retractable traffic bollard is a high-quality hydraulic security bollard which is particularly suitable for the intelligent and automatic control of traffic within residential areas. It is an ideal solution for entrance with high security requirements. The solid body can stop the vehicle with high tonnage and high speed easily. Meanwhile, it has the advantage of invisibility and aesthetics.
Features of Daosafe Security Automatic Hydraulic Bollards
- Oil-immersed hydraulic integrated actuator, low/high temperature resistant, stable performance.
- Passed the international SGS IP68 protection grade certification, can be immersed in water to work.
- PLC intelligent controller can easily integrate with IR, loop detector, or other access control system.
- Fast lifting speed, 2.5s for up, 2s for down.
- Optional heating function for extremely cold area.
- 304 stainless steel for cylinder & inside parts.
- Flange groove design for aesthetics and skid proof.
- Piston rod is treated with QPQ salt bath nitriding, more hardness and anti-rust capability.
- Multiple color LED with various dynamic mode.
- LED timing auto On/Off function.
- 3M-DG3 reflective tape, visual range 600m.
- Motor idling protection function.

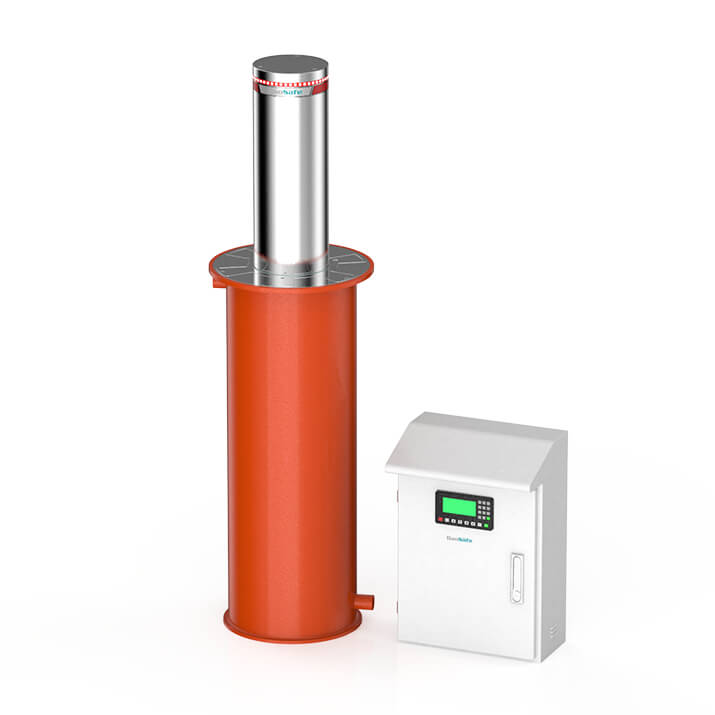

Product Details and Dimensions
The one control box support simultaneously controlled the many sets of the hydraulic bollards.

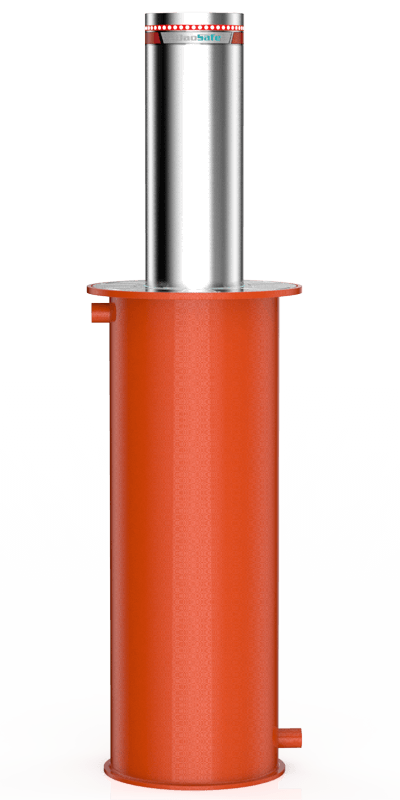

Full 304 stainess steel
1 of 5LED indicator

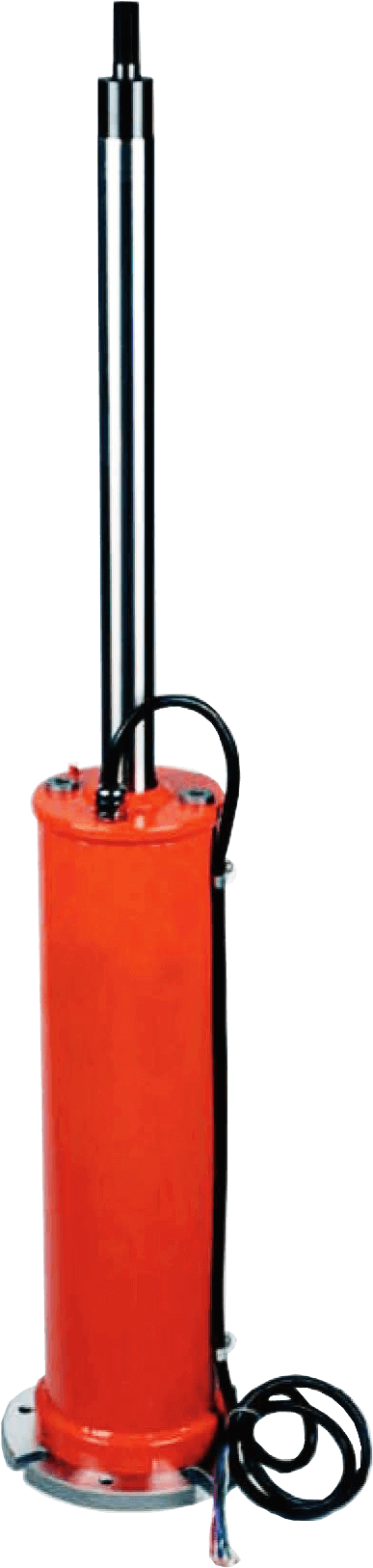

2 of 5Oil-immersed hydraulic actuator
3 of 5LCD screen
4 of 5PLC program control box
5 of 5
Product Parameters
Bollards
| Model No. | DSSP1005 |
|---|---|
| Brand | Daosafe Security |
| Rising Time | 2.5s |
| Dropping Time | 2s |
| Dimension | φ400 * 1105mm |
| Height Aboveground | 600mm (800mm Optional) |
| Height Underground | 1105mm |
| Cylinder Diameter | 219mm (273/324mm Optional) |
| Cylinder Thickness | 6mm (8/10/12mm Optional) |
| Weight | 130kg |
| Material of Cylinder | 304 Stainless steel |
| Flange Thickness | 10mm |
| Pre-embedded Section | Q235 Steel (A3) |
| Material of Actuator | 304 Stainless steel with spraying plastics |
| Diameter of Piston Rod | 18mm |
| Reflective Tape | 3M-DG3, 50mm |
| LED Warning Light | RGB, various dynamic mode |
Hydraulic Actuator
| Actuator Type | Oil-immersed |
|---|---|
| Lifting Force | 130kg |
| Protection Rate | IP68 |
| Power Supply | 220V/110V AC |
| Power Consumption | 350W |
| Overheating Protection | 75℃ |
| Ambient Temperature | -40℃ ~ 55℃ |
| Oil Tank Capacity | .............................................4L............................................. |
| Heating Unit | Optional |
PLC Control Box
| Control System | TouchWin PLC with Display |
|---|---|
| Controller Box | Spray paint (Outdoor use) |
| Self-testing Program | Yes |
| LED Light Auto On/Off | ...............................................Yes............................................... |
| Emergency Rise/Drop | Yes |
| Air Leakage Switch | Yes (CHNT Brand) |
| Power Supply | Taiwan Mean Well 220V/110V AC |
| Remote Control Distance | 100m (Bollard)/30m (LED) |
Multiple Models for Your Choosing
Automatic Hydraulic Bollards
DSSP1005
Removable Bollards
DSSP1002
Fixed Bollards
DSSP1001
Professional Guiding, Efficient Installing
Follow professional and safe installation procedures, for easy daily maintenance while achieving a high level of protection.

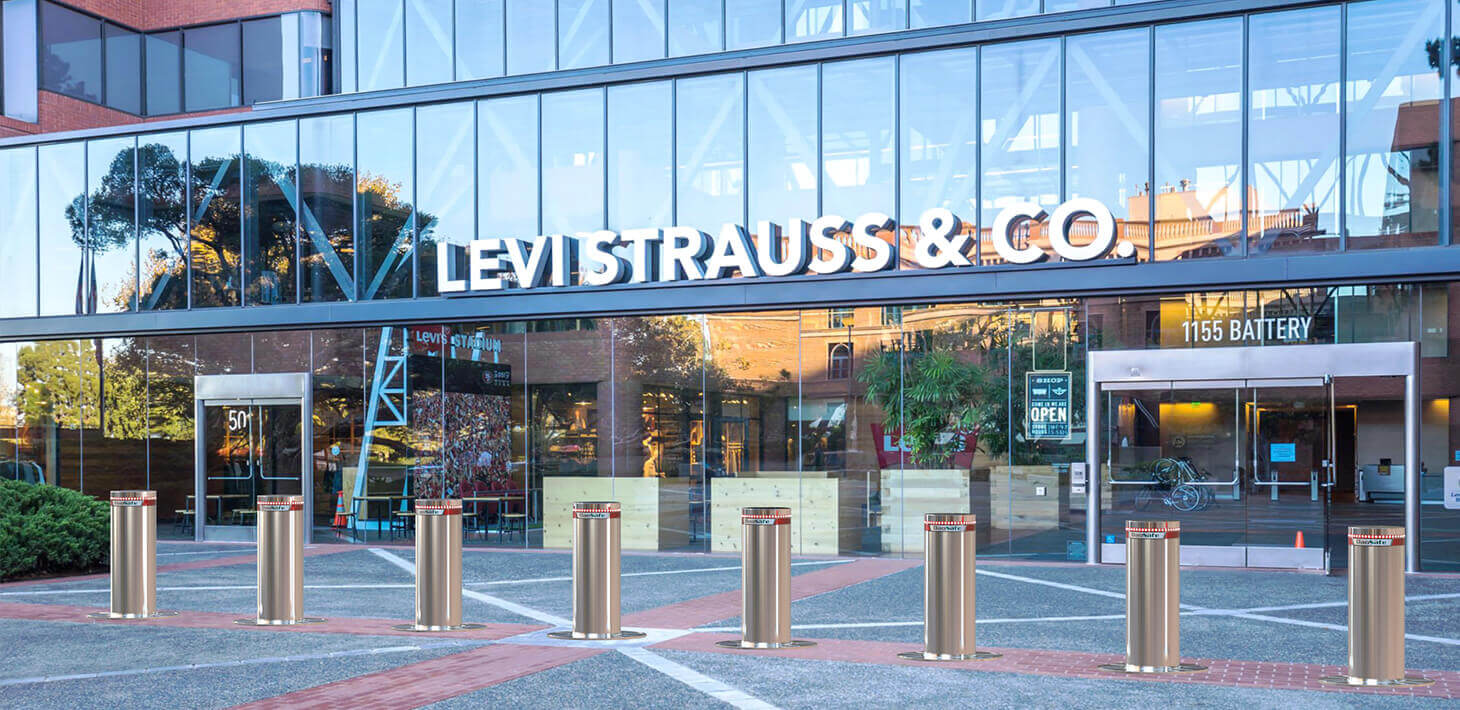

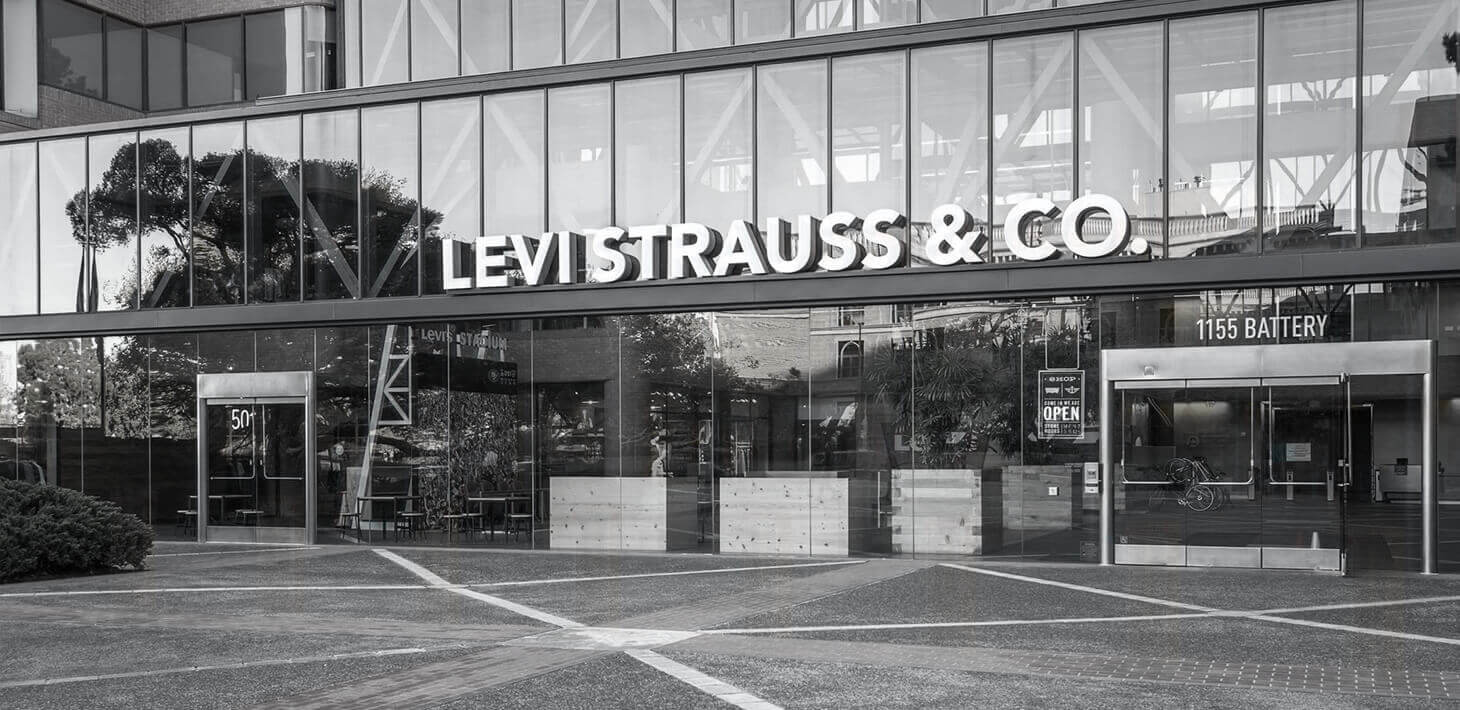

Clients Gallery
